StarLight Garage suggest PD the next car to be included in the GT-Series, the beautiful classic BMW 700 RS from 1961. Yes, it's a BMW and a very rare one too because only two has been built.


Suggested by the "biggest" BMW aficionado, CostasDrifter!




During the fifties the BMW company had quite an unbalanced model range. On one hand there were the high profile luxury cars, powered by the famous alloy V8, while on the other hand the company got most of its revenues out of selling the Isetta bubblecar, based on a design taken over from the Italian Iso company. One of the other main activities was building and selling motorcycles. It was the single cylinder engine of the 250 cc motorcycle that was used to power the Isetta. Apart from that, the motorcycles were also propelled by a 2 cylinder air cooled boxer engine, originally available as a 500 cc but with room to grow in displacement.

This two-cylinder engine, enlarged to 600 cc, first saw automotive use in the BMW 600 introduced in 1957. This was basically an Isetta, widened at the rear to accommodate a bench for two people and a side door on the right hand side. The front opening door of the Isetta was maintained. The engine produced 19.5 bhp, and the car could reach just over 100 km/h. In spite of its qualities, the 600 did not become the success BMW had hoped for. By November 1959 and after a production of just under 35000 units, the plug was pulled.

In the mean time, thinking had gone further and already in early 1957 a full four seater car with normal proportions was being prepared. Shortly after, Giovanni Michelotti received an order to produce a prototype, which was duly presented in July 1958. The pleasing lines of the car convinced the board to proceed and by mid 1959 the car went into production.

It featured a 700 cc version of the boxer engine, located behind the rear axle. Developing 32 bhp, it had a significantly better specific output than the 600. Interestingly the first body version that was offered was a 2+2 coupe, while the sedan version with a slightly extended roof and more head room on the rear seats came only several months later.

The boxer engine already had sufficient motorsport pedigree. It was not only used in bike racing itself but also dominated the sidecar category for a very long period. Not surprisingly, by mid 1960 a twin-carburetor, 40 bhp version of the 700 Coupe was offered, dubbed the 700 CS. This car formed the basis for BMW's first appearance in international racing since WWII. In competition guise the engine could easily be tuned to produce over 60 bhp.

The 700 CS became a familiar sight in the European Touring car races. Together with the sedan, it generated enough cash flow for BMW to develop the 1500; the first modern BMW. The company's current can still trace their roots to the 1500, which was first shown in prototype form in 1961. The 700 remained in production till September 1965, and at the end of the line over 188,000 cars (all models) were completed.

The motorsport career of the 697 cc boxer engine continued well into the 1960s. In early 1961 BMW developed a very special version of the engine, with two kingpin driven OHCs per cylinder and producing over 70 BHP getting its fuel mixture from two 36 mm Dell'Orto Carburetors. The engine was put into a tubular frame chassis this time in front of the rear axle. An all alloy body completed the package.

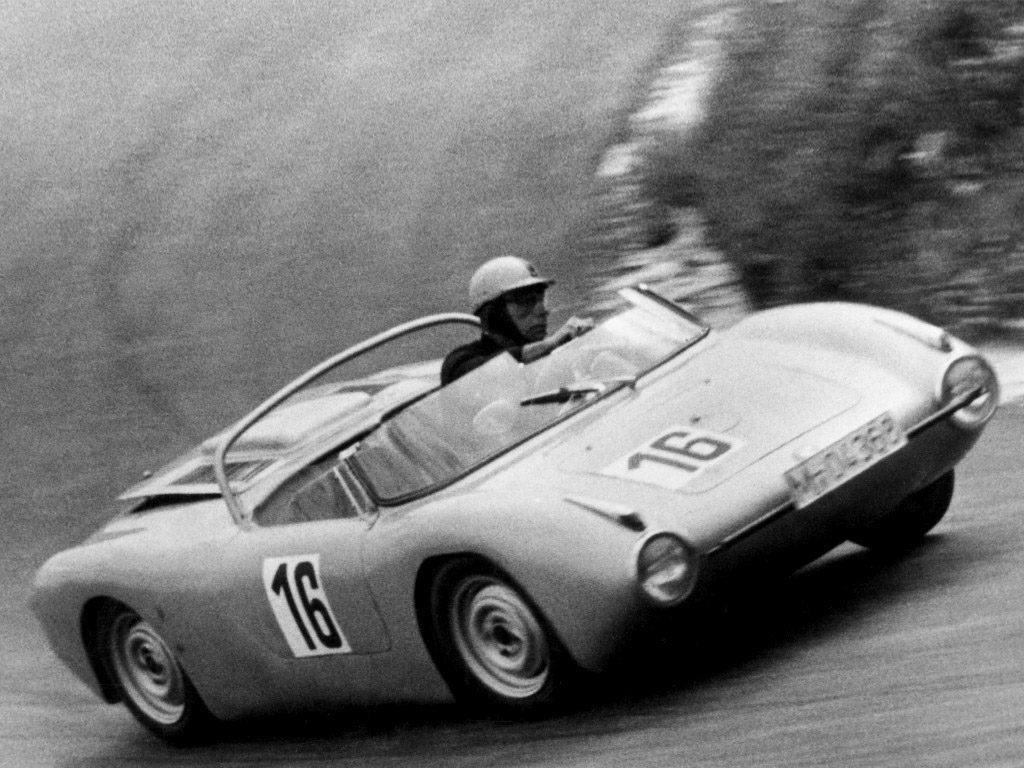

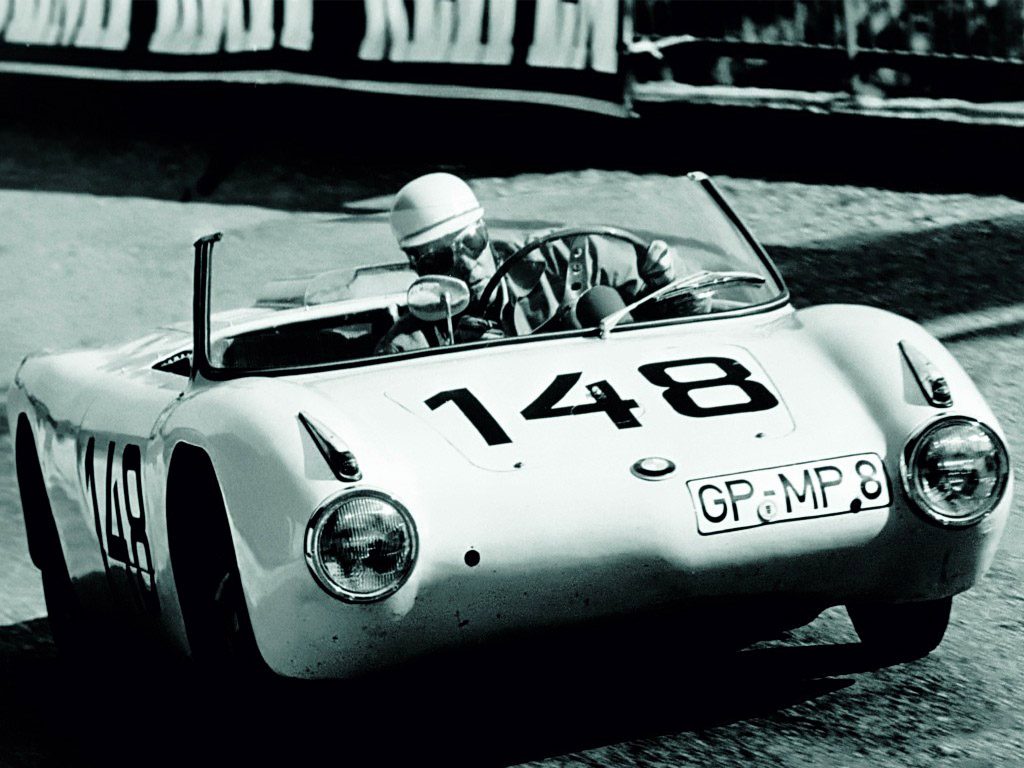

Hans Stuck campaigned the BMW 700 RS with success.

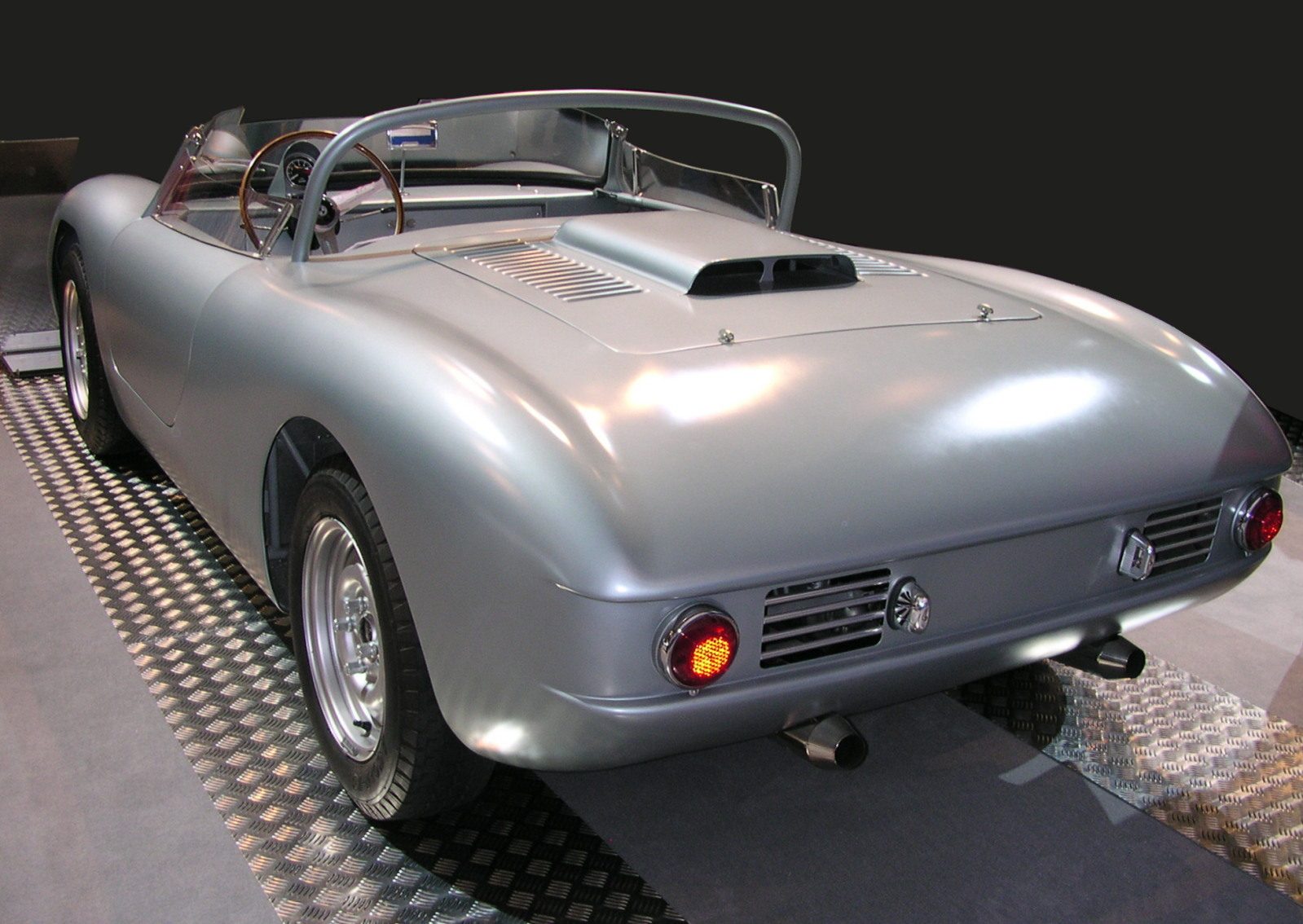

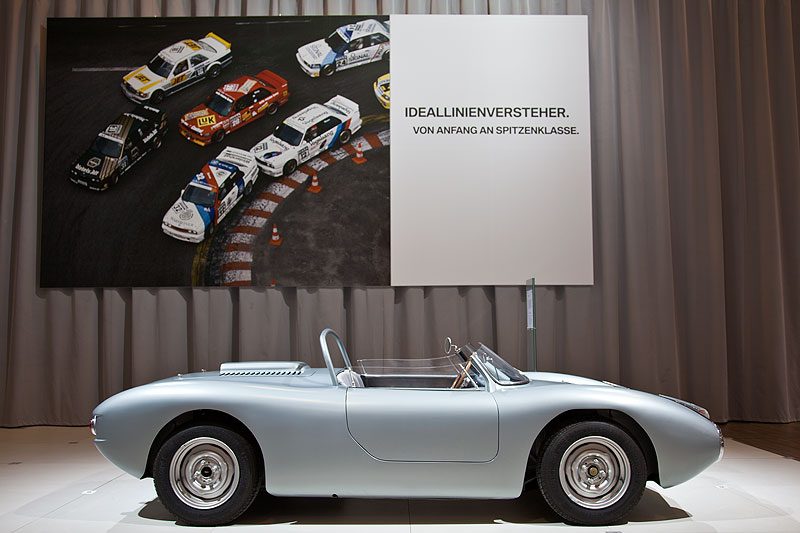

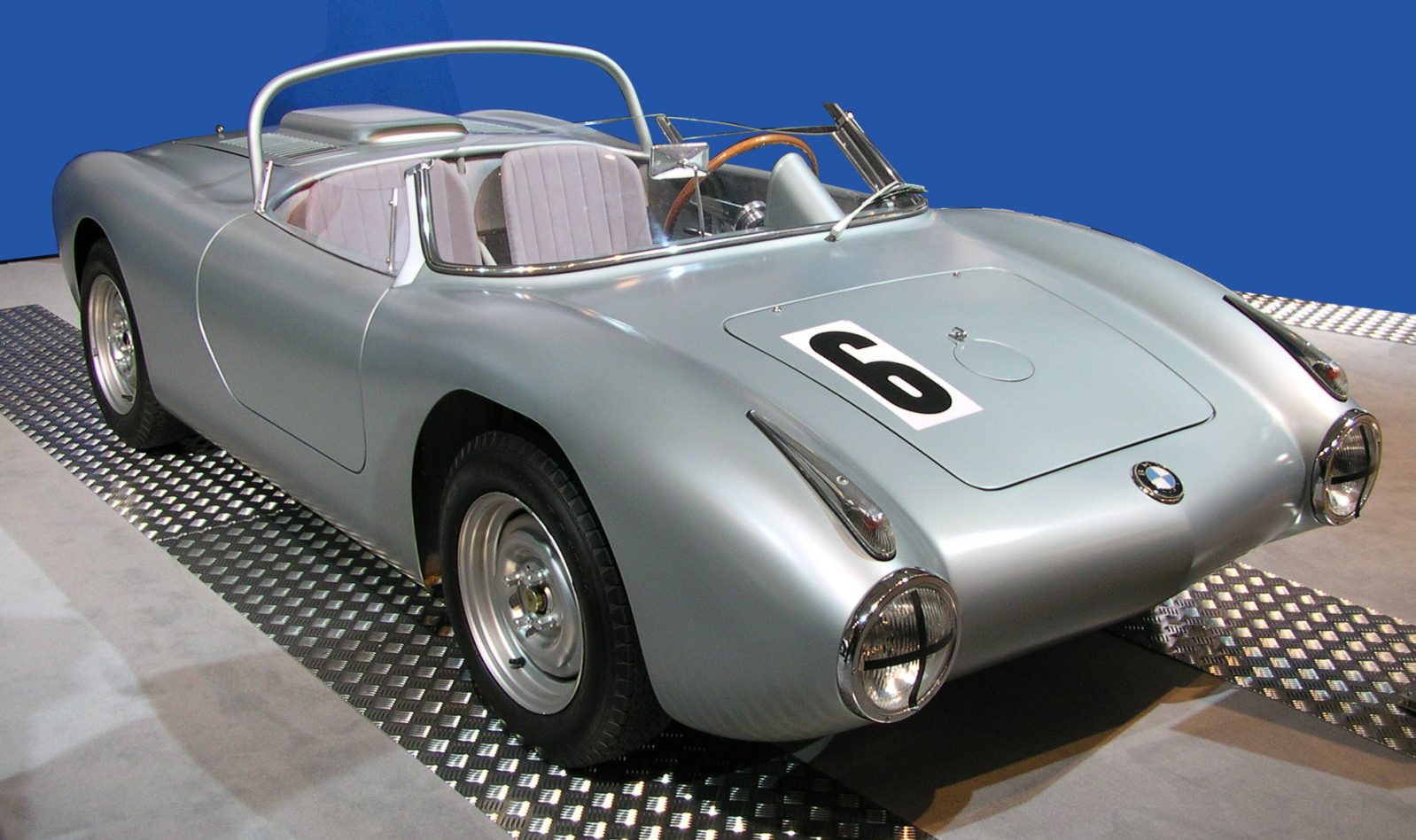

The bespoke racing car was dubbed the 700 RS and was specially designed for the popular hillclimb races. From its debut in in June of 1961 until the 1963, the lightweight BMW dominated its class. Some sources say as many as 19 were produced but BMW state only two were ever built. They still own one of the cars and we are aware of another car that is Florida. The BMW 700 RS underneath was present at the Techno Classica 2009 where the 700's 50th anniversary was celebrated.


Specifications
Country of origin: Germany
Produced in: 1961
Numbers built: 2

Engine
Configuration: B2
Location: Rear, longitudinally mounted
Displacement: 697 cc (42.5 cu in)
Bore: 78.0 mm (3.1 in)
Stroke: 73.0 mm (2.9 in)
Valvetrain: 2 valves / cylinder, DOHC
Fuel feed: 2 Dell'Orto Carburetors
Aspiration: Naturally Aspirated
Power: 70 hp (52 KW) @ 8,000 rpm
HP/Liter: 100 hp/liter

Drivetrain
Chassis: Aluminium body steel tubular spaceframe
Brakes: Drums, all-round
Gearbox: 5 speed Manual
Drive: Rear Wheel Drive

Dimensions
Weight: 650 kilo (1,433 lbs)
Length: 3,465 mm (136.4 in)
Width: 1,460 mm (57.5 in)
Height: 1,060 mm (41.7 in)
Wheelbase: 2,000 mm (78.7 in)

Performance figures
Power to weight: 0.11 hp/kg
Top Speed: 160 km/h (99 mph)























THE OTHER BMW ARE HERE


Last edited:
2,873
Sweden
Sweden
SMH1989
Hm I was so glad when I saw "BMW 700" and thought that it was the small sedan/coupe haha but this would work as much as them :P Nice


The87Dodge

(Banned)
3,189
United States
Seattle, WA
rizkeat
The only downside is that it has 70 horsepower. I expected more, but it still seems like a fun car to drive.

6,643
Portugal
Portugal
Interesting looking little thing. Kind of reminds me of the Porsche 550A.

Yes, I agree with you ... good spotting!
:cheers:


Hm I was so glad when I saw "BMW 700" and thought that it was the small sedan/coupe haha but this would work as much as them :P Nice

I know exactly what you mean .. got you!
:D


The only downside is that it has 70 horsepower. I expected more, but it still seems like a fun car to drive.

Yes, it could indeed have more hp ... but this car is not heavy so it will compensate a little bit the missing ponies.
👍


Dotini

Premium
15,140
United States
Seattle
CR80_Shifty
Hm I was so glad when I saw "BMW 700" and thought that it was the small sedan/coupe haha but this would work as much as them :P Nice
I owned, drove daily and raced one of these when I was 18. It was an extremely well made and designed car for the time, I thought. Far in excess of the Austin-Healey Sprite I previously owned. It had a roll cage, proper racing straps, a hopped-up engine with cam, carbs and pipes, and a two-toned paint job - red on the left half, white on the right. I loved that car. I wrecked at Westwood but repaired it, blew up the motor but repaired it. I sold it when I bought a bespoke racing car, a Ford Falcon station wagon to tow it with, and made my own trailer.

BMW 700 LS Coupe

6,643
Portugal
Portugal
I owned, drove daily and raced one of these when I was 18. It was an extremely well made and designed car for the time, I thought. Far in excess of the Austin-Healey Sprite I previously owned. It had a roll cage, proper racing straps, a hopped-up engine with cam, carbs and pipes, and a two-toned paint job - red on the left half, white on the right. I loved that car. I wrecked at Westwood but repaired it, blew up the motor but repaired it. I sold it when I bought a bespoke racing car, a Ford Falcon station wagon to tow it with, and made my own trailer.



BMW 700 LS Coupe


Yes, really awesome car ... thanks again for sharing with us.
It's always great when some who has owned such cars share their experience with us, very appreciated.
Thanks!
:cheers:


The87Dodge

(Banned)
3,189
United States
Seattle, WA
rizkeat
I owned, drove daily and raced one of these when I was 18. It was an extremely well made and designed car for the time, I thought. Far in excess of the Austin-Healey Sprite I previously owned. It had a roll cage, proper racing straps, a hopped-up engine with cam, carbs and pipes, and a two-toned paint job - red on the left half, white on the right. I loved that car. I wrecked at Westwood but repaired it, blew up the motor but repaired it. I sold it when I bought a bespoke racing car, a Ford Falcon station wagon to tow it with, and made my own trailer.

BMW 700 LS Coupe
Cool story bro.
