Edit: I replaced the original metal washer with a custom one that has a larger diameter and now the pressure of the pedal face that I have to apply to reach 100% input at MAX BRF setting is 85kg.

Very simple, cheap and easy mod with a rubber washer.
This modification increases the pressure of the pedal that you have to apply to reach 100% input at MAX BRF setting from 60kg to 75kg.

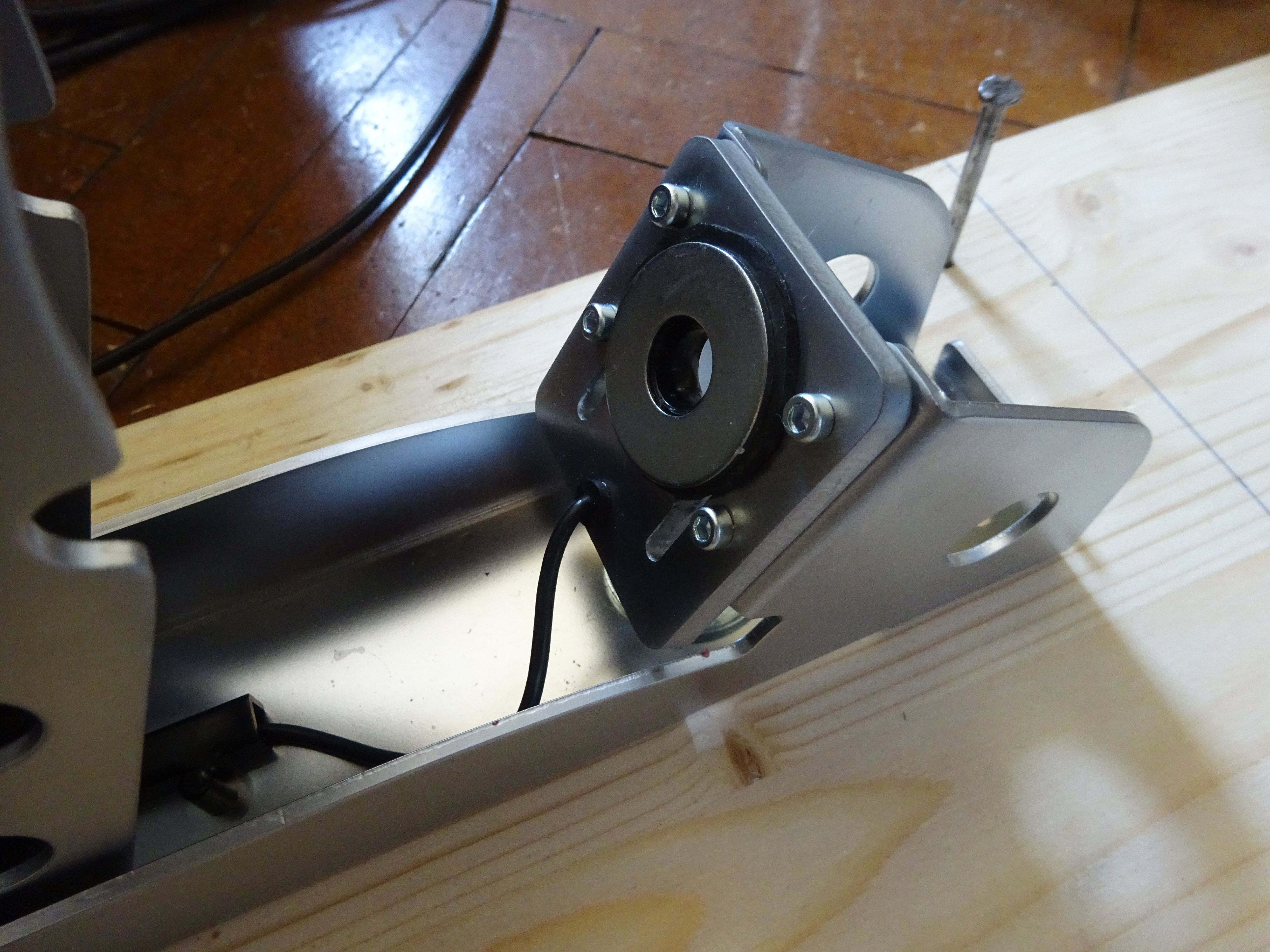

The increase in pressure is done by a rubber washer which transmits part of the pressure from the big metal washer to the upper part of the load cell which does not bend. The rubber washer is 1.7 mm thick, inner diameter 20mm, outer diameter 34mm.








Keep in mind that this will increase the load on the elastomer springs and will most likely shorten their life.
