StarLight presents another classic car designed by Zagato, a little pearl from the Fiat and Abarth collaboration.

This car was suggested by CostasDrifter

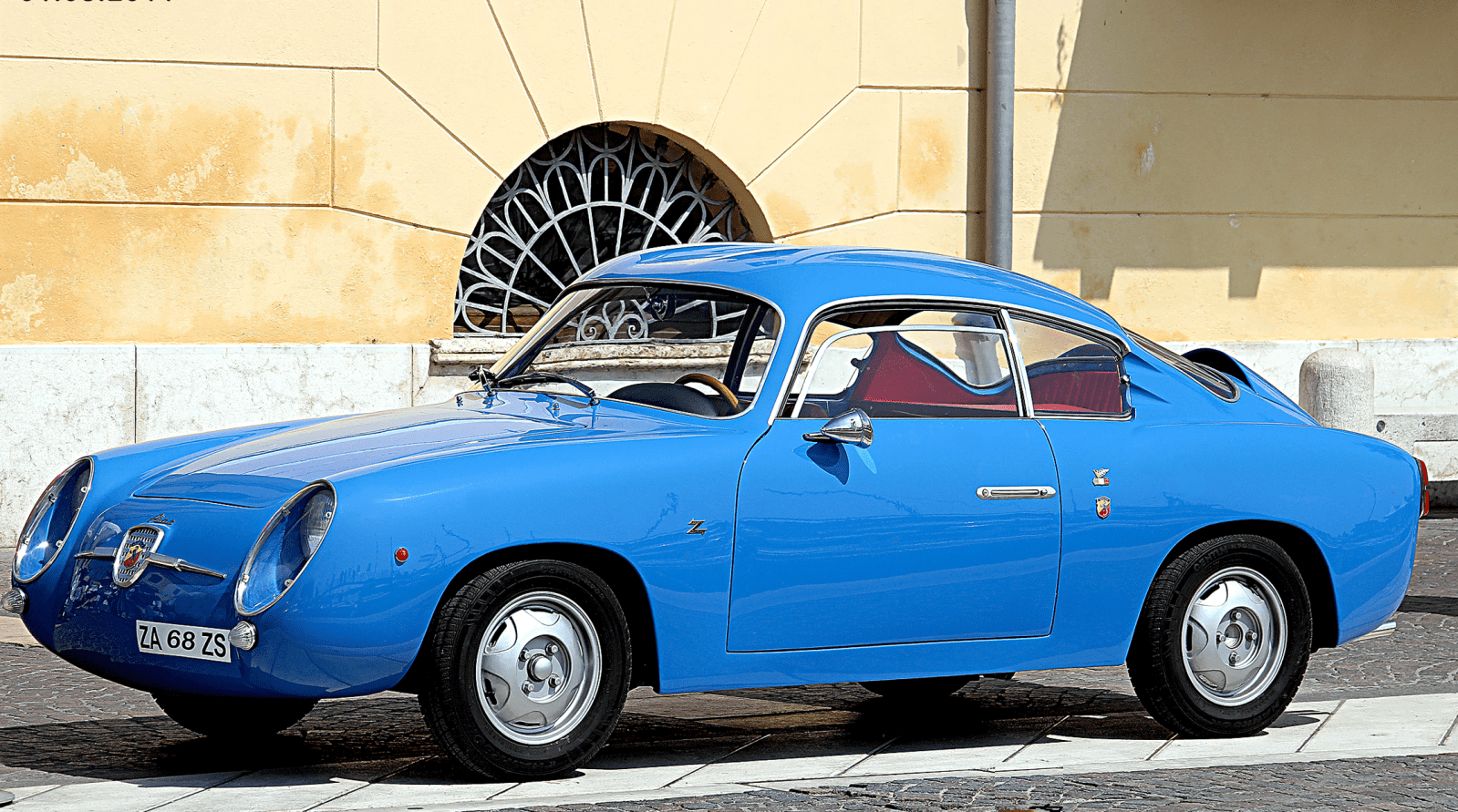

The Abarth 750 Zagato has the familiar Zagato bubble roof top. The Abarth Company was a small Italian tuning company founded in 1950 by Carlo Abarth. Within a short amount of time, the business had established itself as a prominent tuner of vehicles. This vehicle is built atop a Fiat vehicle and powered by a four-cylinder engine. Horsepower was just over 40 which is about double what the standard Fiat engine used. The optional Bialbero GT engine raised horsepower even further. It is matted to a four-speed manual gearbox and has four-wheel hydraulically operated drum brakes.

Most of the projects Abarth undertook were with Fiat vehicles and mechanical components. The results of his work were highly tuned engines, lightweight vehicle, and nimble handling. The cars dominated the smaller classes and often were quicker than the larger, more powerful competition in other classes.

The 750 Zagato Record Monza Coupe was based upon the Fiat 600. It was introduced in 1958. Power came from a Giochino Colombo designed twin cam 750cc engine which was capable of producing 57 horsepower at 7000 RPM. Top speed was in the neighborhood of 180 km/h.

During the 1957, 1958, and 1959 Mille Miglia, the 750 Monza Coupe emerged victorious in their class. Class wins at the 1961 LeMans, Sebring and Daytona Beach races were also among their accomplishments. They racked up many impressive victories in many types of racing, including hill climbs.


Specifications
Tuner: Abarth
Body Designer: Zagato
Production Years for Series: 1956 - 1965

Drive Type: Rear Wheel
Body / Chassis: Aluminium

Engine Location: Front
Engine Type : S4 747 cc | 45.6 cu in. | 0.7 L.
45 BHP (33.12 KW) @ 5500 RPM
40 Ft-Lbs (54 NM) @ 4000 RPM
Bore : 2.4 in | 61 mm.
Stroke : 2.5 in | 64 mm.
S4 46
Transmission: 4 Manual

Weight: 1180 lbs | 535.239 kg
Top Speed: 130 km/h | 80.795 mph












THE OTHER ABARTHS ARE HERE




THE OTHER FIAT IS HERE



Last edited:
This is getting very close to the archetypal Fiat-Abarth. It needs red paint!

Hordes of these were on the racing scene throughout the late fifties and the sixties. The excellent engine was used extensively for "specials" in the SCCA H-Modified (later D-Modified) sports-racing class.

Note the signature "double bubble" roof.

Last edited:
....I might get shot at for saying this, but....

I don't like it. That front especially - urgh. :ouch:
Hm, yeah "bang bang!" , but nah I think the light section is little ugly , but the rest of the car is awesome :P

Later versions of the Fiat Abarth cleaned up the nose. The 1300 Simca-Abarth was a knockout. But the 750 Zagato set a legendary standard for the "tiddler" class. It took many wins for many years.
