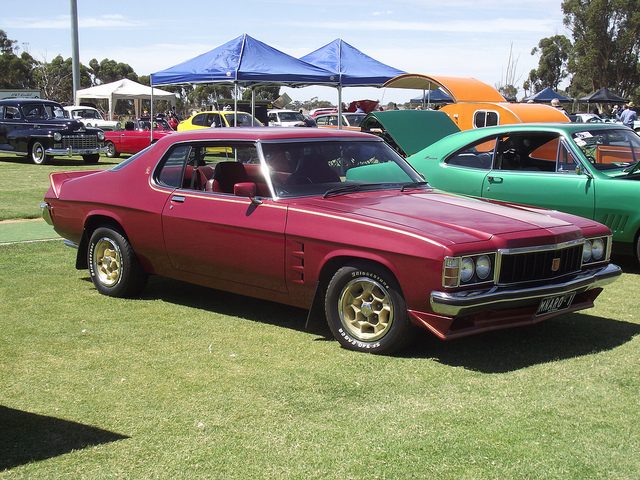

Holden Monaro HX LE 1976

Discussion in 'Cars' started by 05XR8, Dec 31, 2014.

  1. 05XR8

    05XR8

    Messages:
    33,053
    Location:
    Australia
    [​IMG]

    [​IMG]



    [​IMG]

    [​IMG]

    Complete Specs:

    Engine: 5.0 litre V8, 180kW(241hp)
    Bore: 4.000″ (101.6mm) x stroke” 3.062″ (77.7mm)
    Cubic Capacity: 307.83 cu. ins. (5044 cm3)
    Compression Ratio: 9.7:1
    Transmission: Turbo-Hydramatic 3 speed auto: Console mounted T-Bar floor shift
    Rear Axle: Type – Salisbury (Limited Slip Differential)
    Suspension: Front – Independent with coil springs. Rear – 4 link design with axle mounted coil springs
    Brakes: Front – Power assisted discs. Rear – Drums, duo servo
    Tyres: ER70H14 Radial Ply
    Wheels: Polycast 7.00 JJ x 14
    Fuel Tank Capacity: 16.5 Gals. (75.0 Litres)
    Wheelbase: 111.0″ (2819mm)
    Track: Front – 60.1″ (1526mm) Rear – 60.8″ (1544mm)
    Overall length: 190.8″ (4846mm)
    Overall width: 73.9″ (1877mm)
    Overall height: 53.4″ (1356mm)
    Turning circle: Kerb to Kerb – 39.7′ (12.1 m)
    Ground clearance: 5.00″ (127 mm)
    Estimated Kerb Weight: 3556 lbs (1613 kg)

    Standard Equipment

    • Variable power steering
    • Fully integrated airconditioning
    • Push button radio – front and rear speakers
    • Quadraphonic cartridge tape player with 4-speaker system
    • Power radio antenna
    • Dual exhaust system – chrome extensions

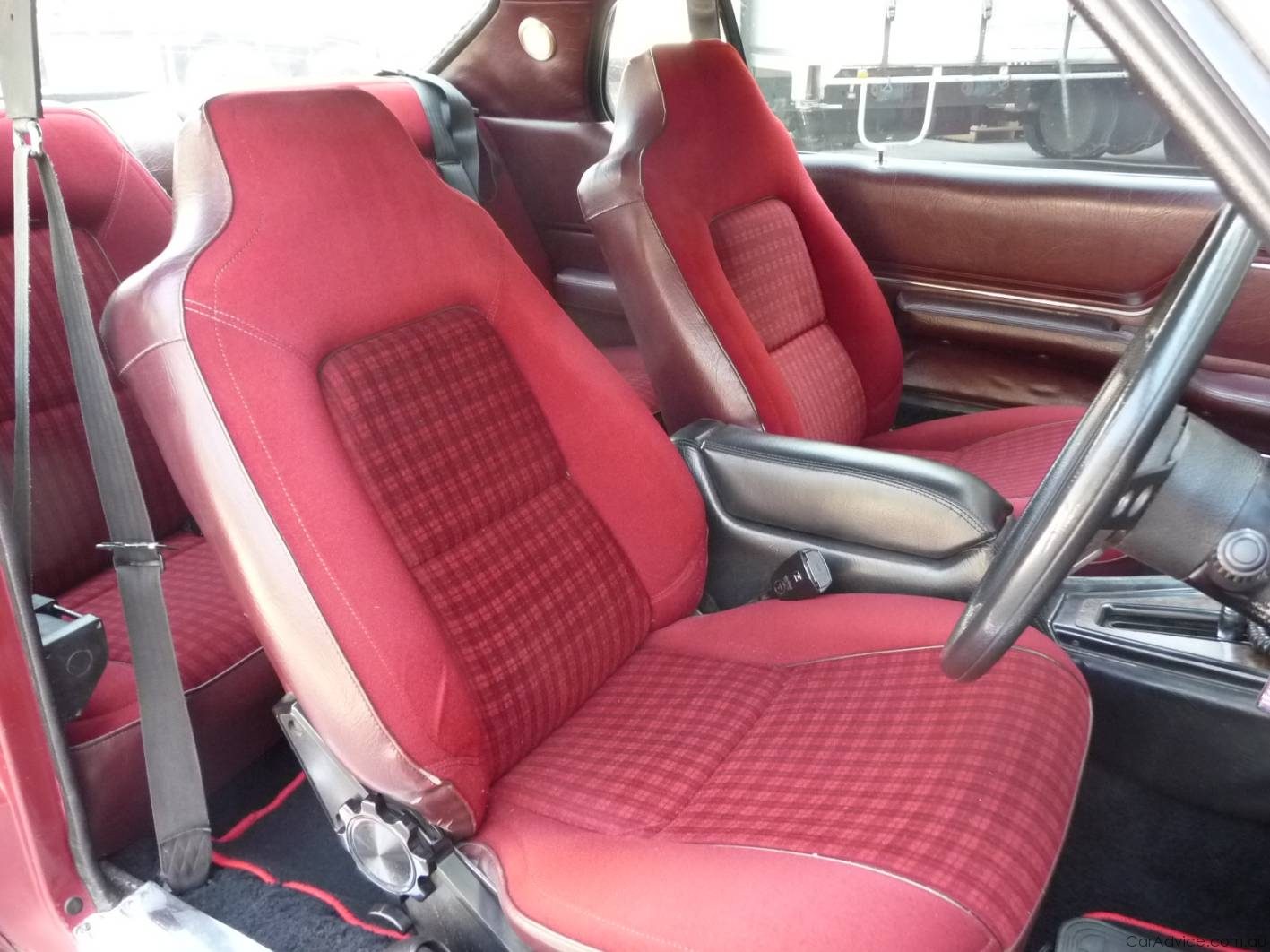

    • Brushed knit cloth seat trim
    • Reclining front bucket seats
    • Full instrumentation including electric clock
    • Cut pile carpeting throughout
    • Power operated side windows
    • Elecrically heated rear window
    • Front air dam. Rear deck spoiler
    • Exterior sports mirrors
    • Limited Slip Differential
    • 4 headlamps inc. 2 quartz halogen high beam
    • Sports suspension specification
    • Exclusive metallic exterior lacquer
    • Gold pin stripe accents
    • Windscreen wiper dwell control
    • Burl walnut finish facings on instrument panel, floor console and door trims
    • 3 spoke sports type steering wheel
    • Tinted side and rear windows
    • Laminated windshield with tinted upper band
    Saftey features include:

    • Energy absorbing steering column
    • Tandem brake master cylinder – with split hydraulic circuits
    • Energy absorbing sun visors
    • Electric windshield washers – two speed wipers
    • Brake system failure warning light
    • Parking brake warning light
    • Front seat head restraints
    • Seat belts for five occupants including retractable dual sensitive belts for front seat positions
    • Flow through ventilation
    • Underslung, isolated fuel tank and external fuel lines
    • Cargo guard – luggage compartment barrier
    • Power assisted front brakes
