    Argh! Lost a massive post trying to add media!

    TL;DR version below..

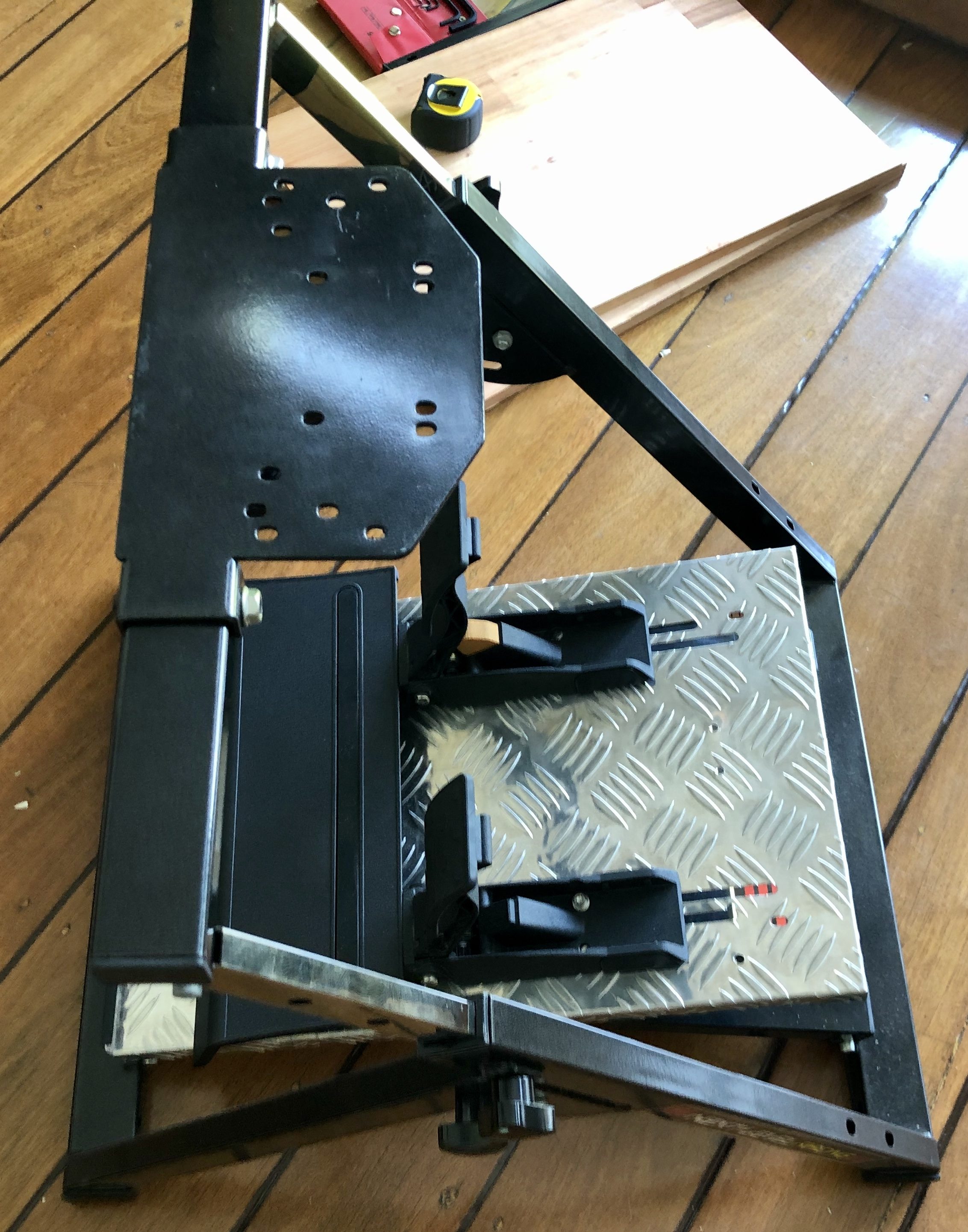

    NLR stand is great, and I like the sliding pedal deck & that the whole thing folds up easily.

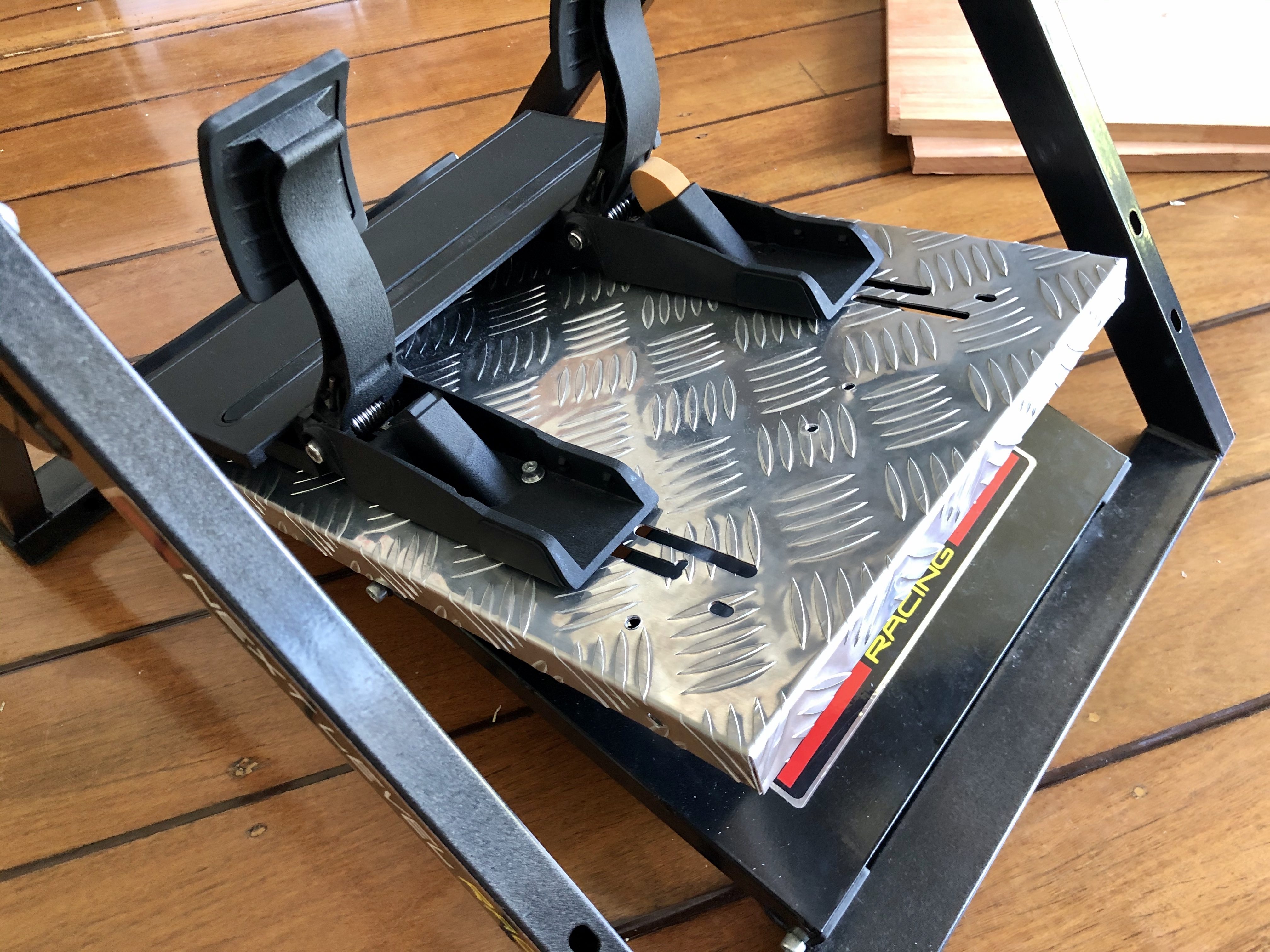

    BUT the checkerplate is ugly & flexes, mounting holes aren’t great either. I need more adjustability, so more ease of mounting/moving pedals.

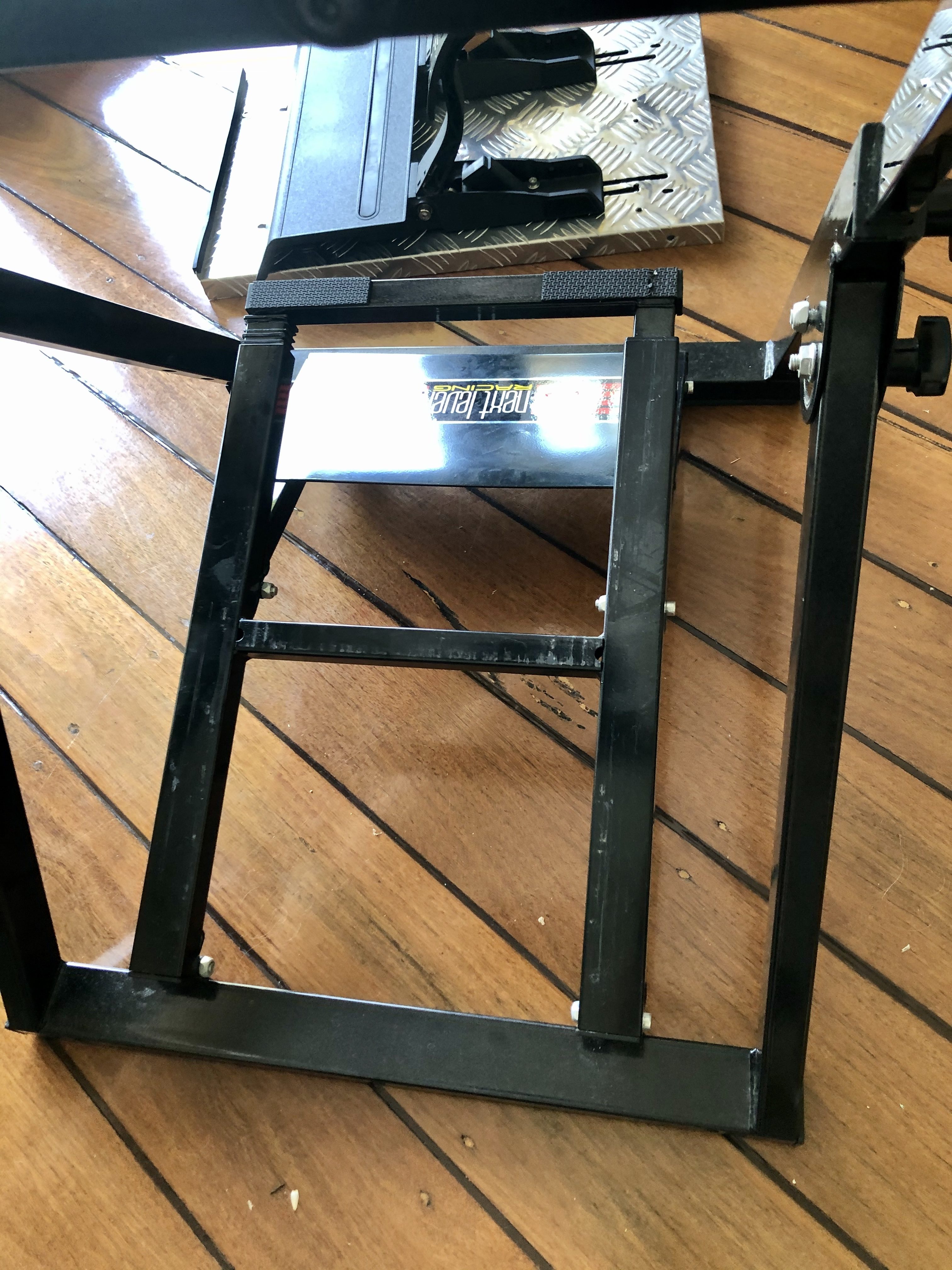

    Remove checkerplate:

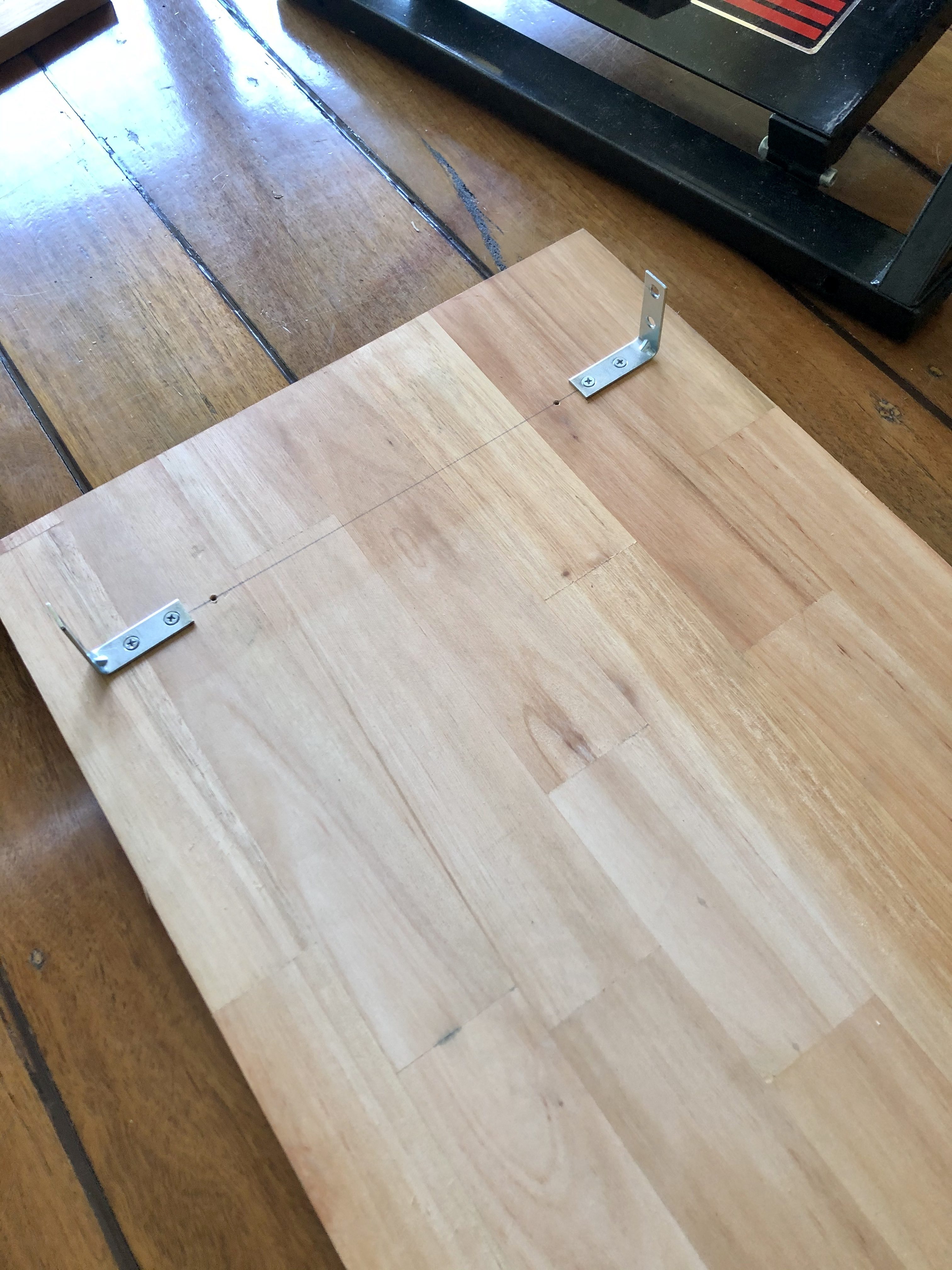

    Got wood (600mm x 400mm x 18mm panel), with some L-brackets for the back.

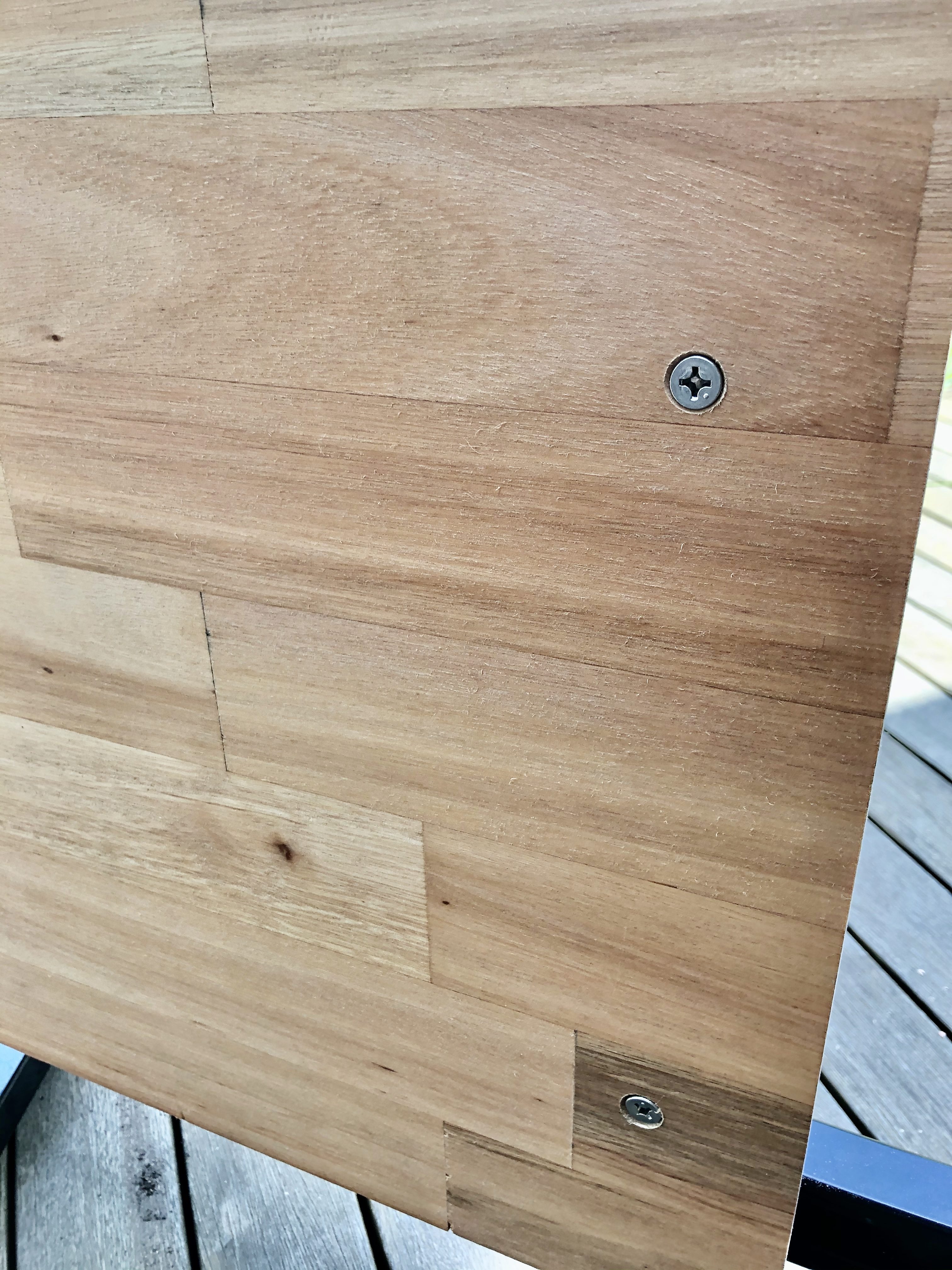

    Countersunk bolts for the front:

    Mount the front:

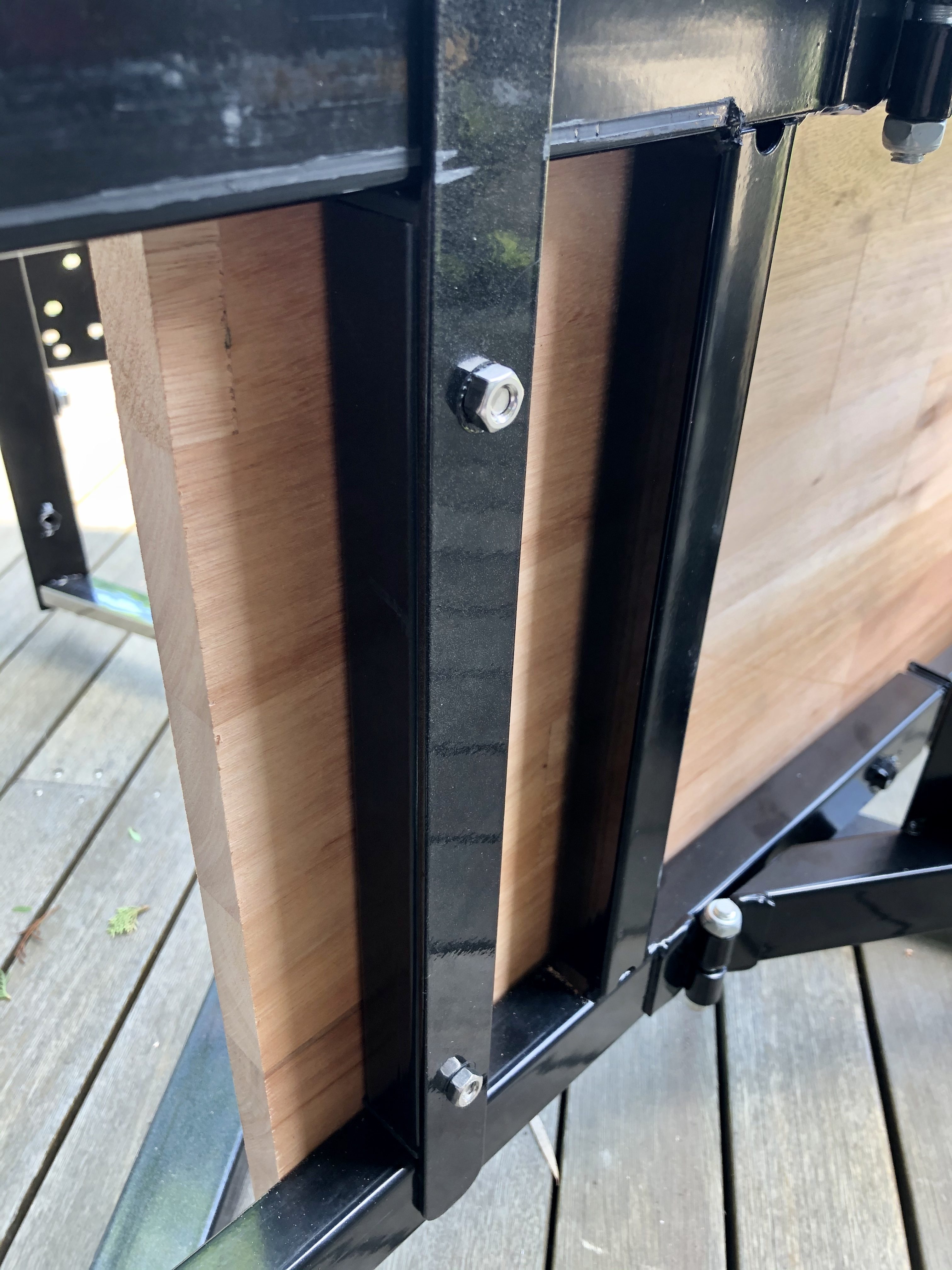

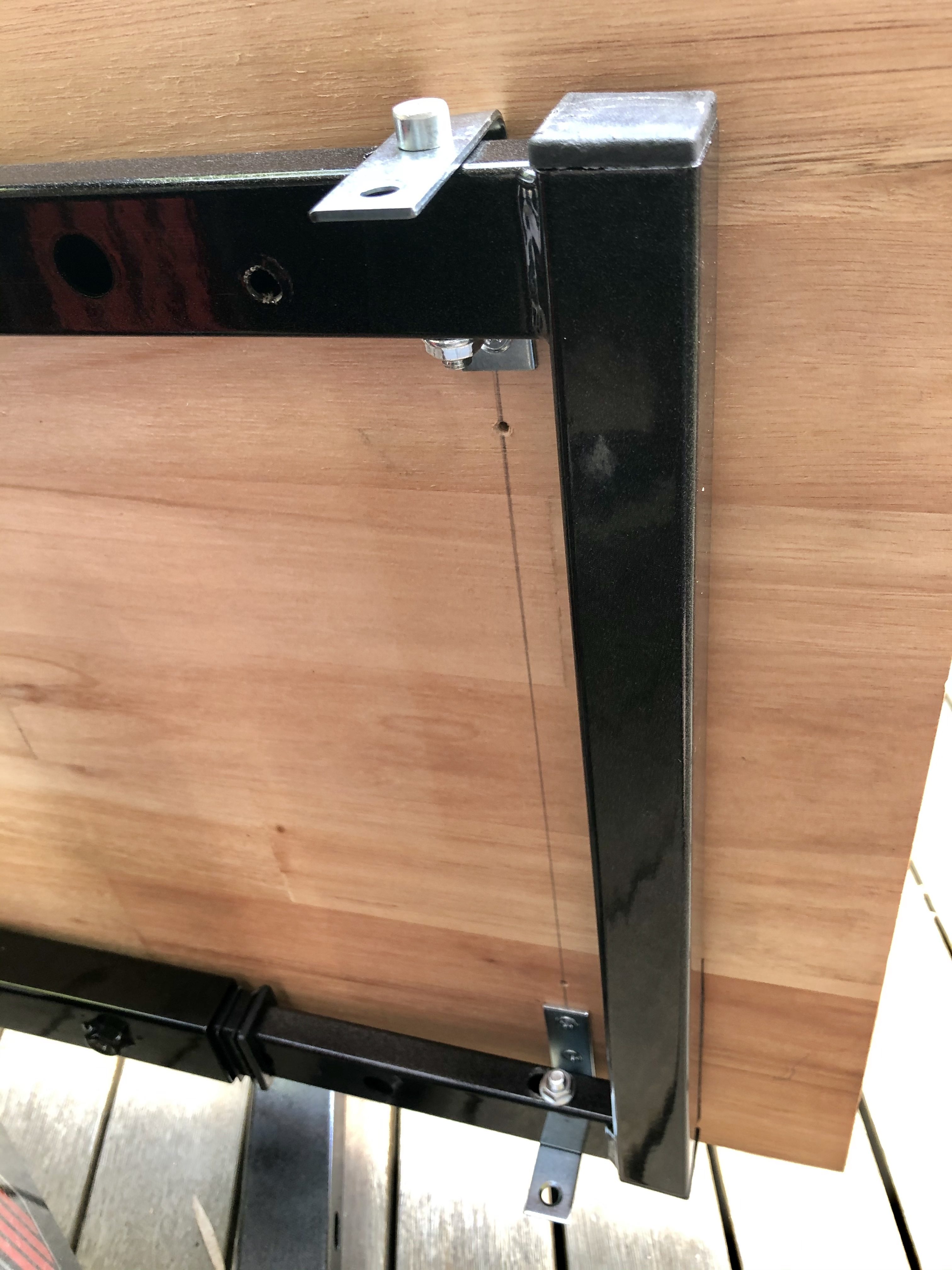

    Mount the back:

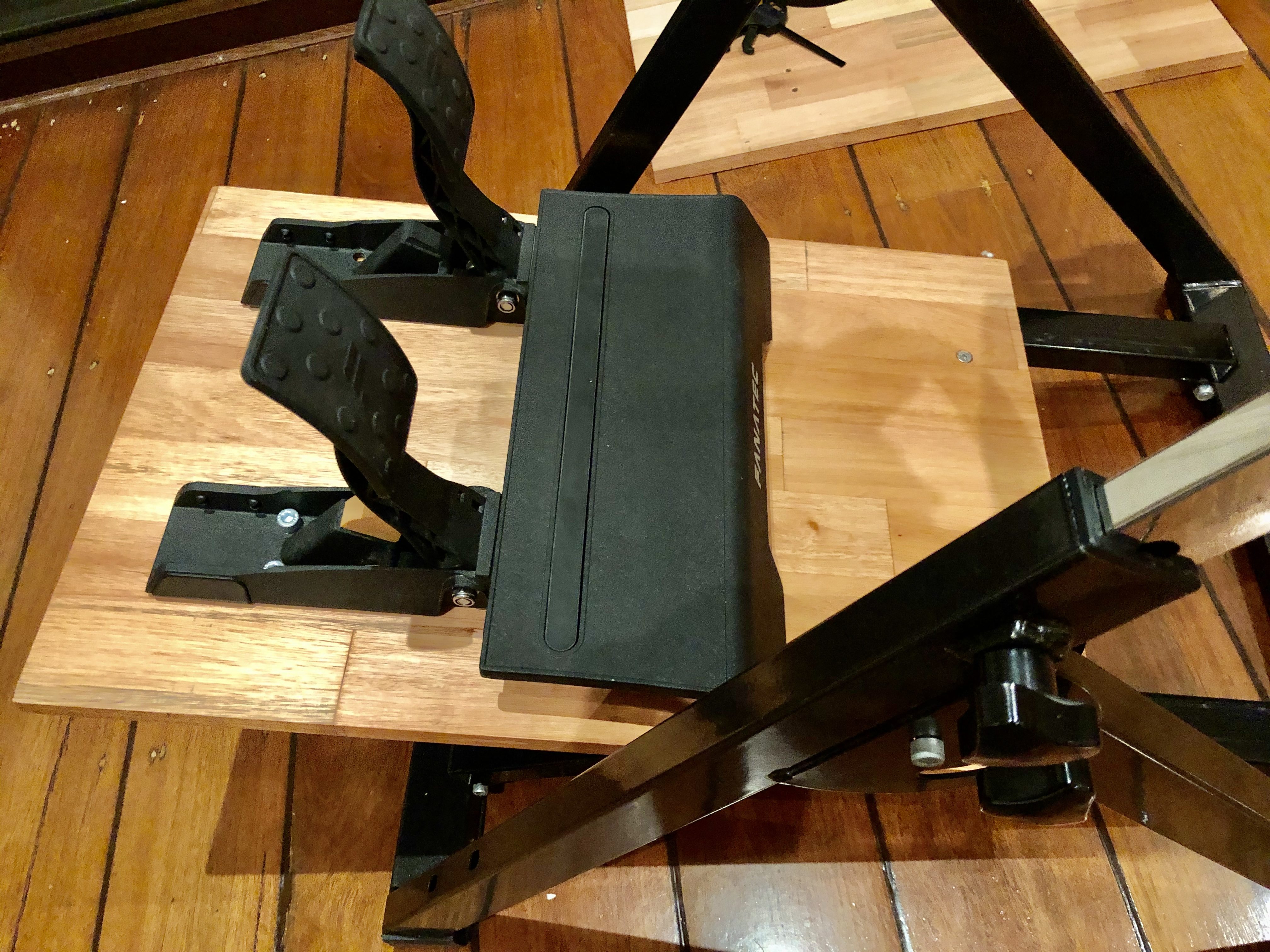

    Test the pedals - I’ve drilled sets of 3 holes for the rear of the pedals, but I’ve got 4 different locations about 8 inches in total so they can be easily moved forwards or backwards (as well as the sliding deck):

    Sand and oil, then reassemble:

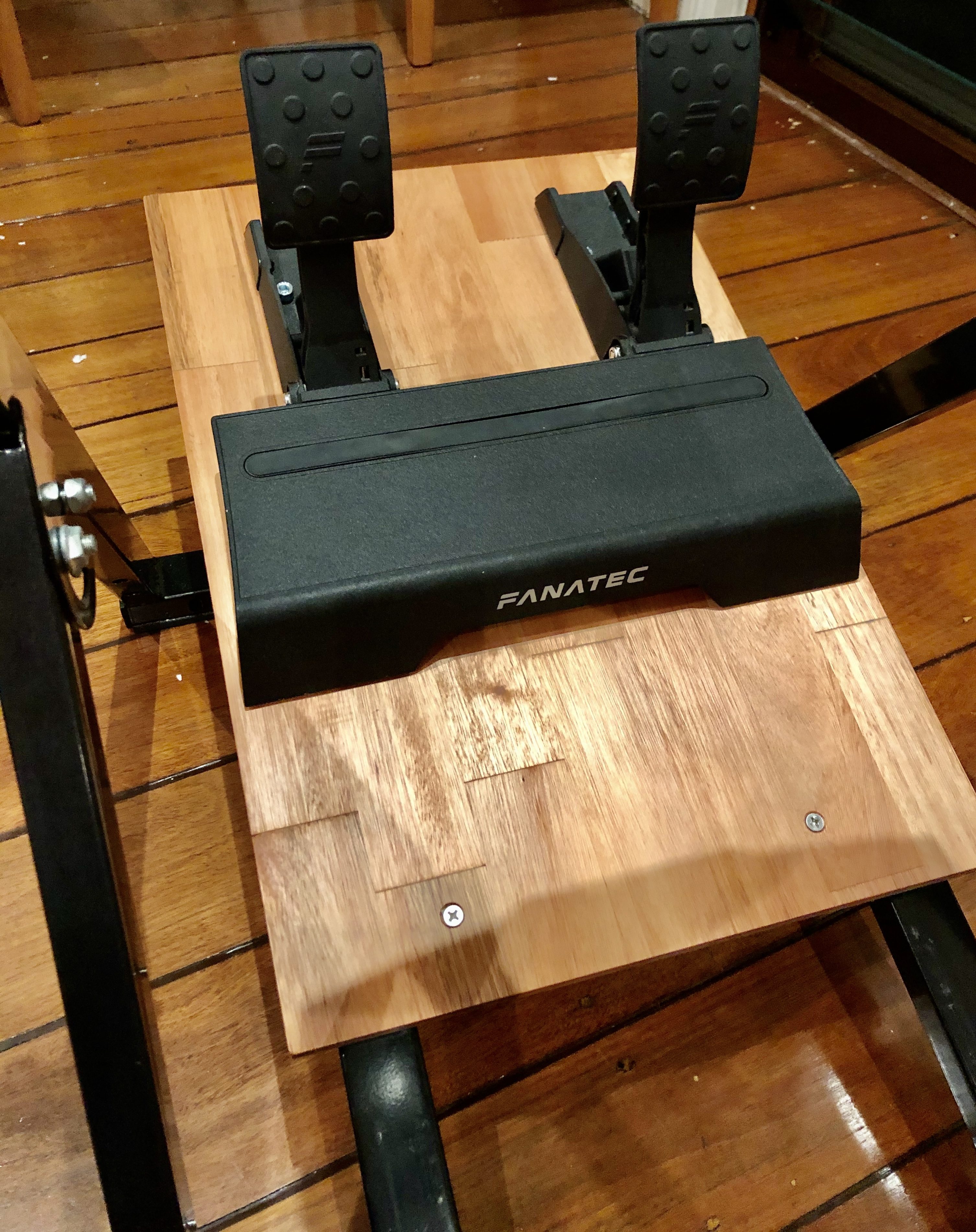

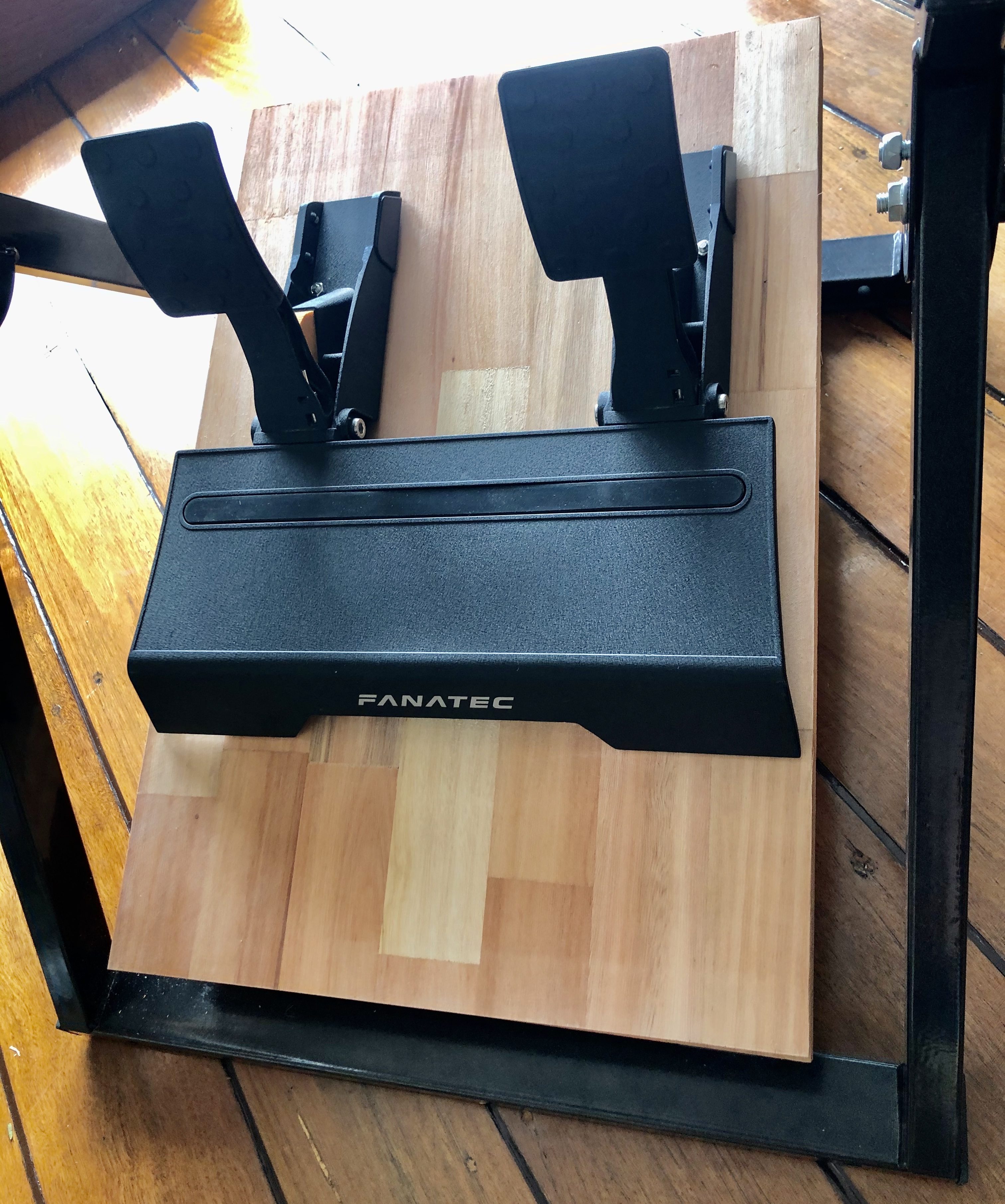

    Pedals mounted with 3 x M8 bolts at the back only, very solid with just these:

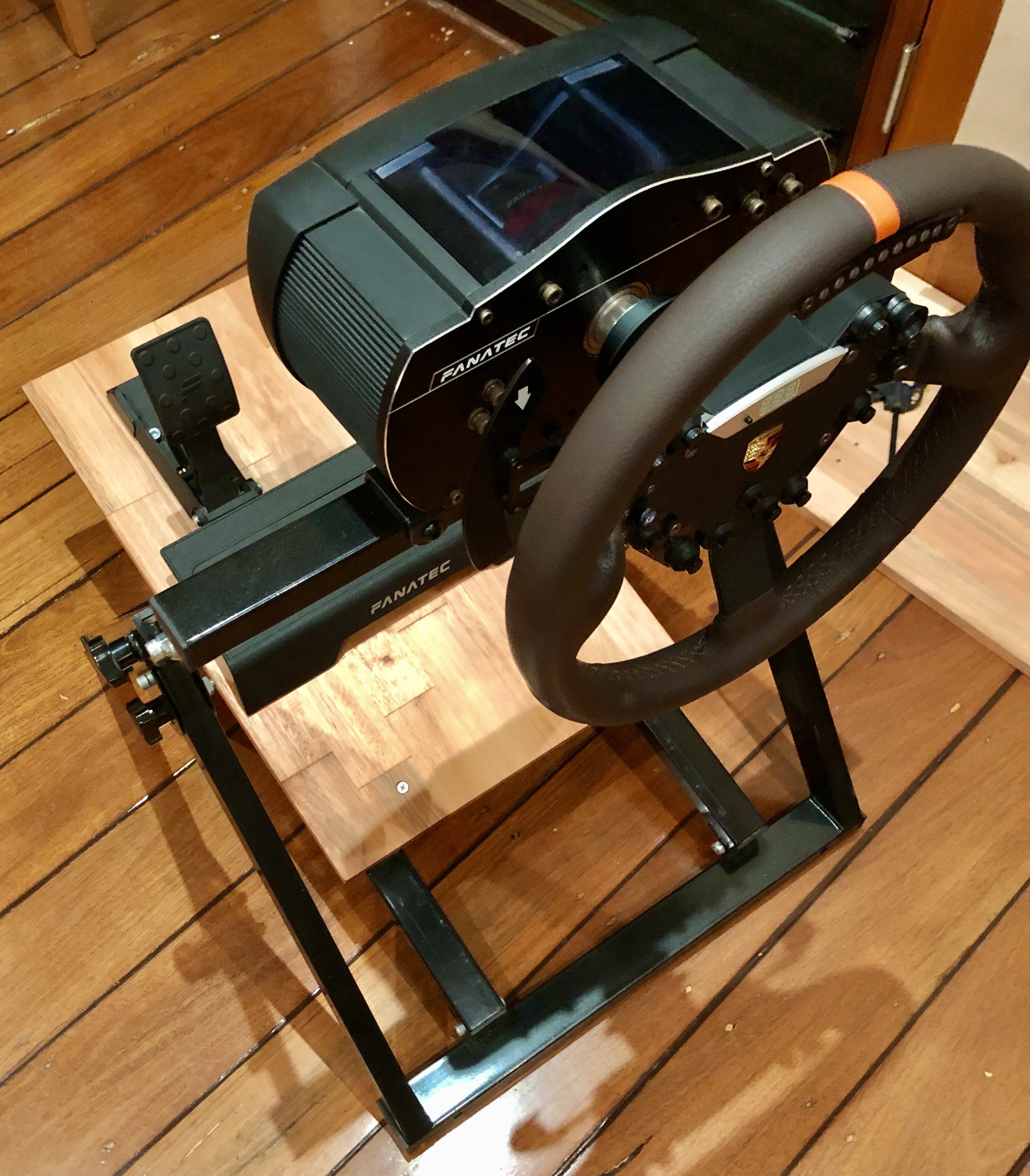

    Looking good:
