SFX-100 3DOF Sim Racing Motion Rig — Local Pickup Only
Asking price: $2,100
Location: League City, TX
Contact:

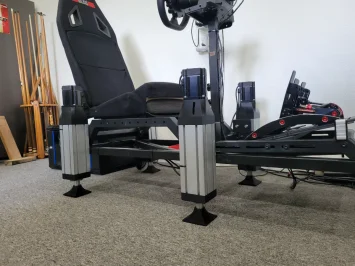

Custom-built, fully functional SFX-100 3DOF sim racing motion rig. A live demonstration is available and encouraged for serious buyers. The rig was last used on August 11, 2026 before decommissioning.
This is a complete motion cockpit and control package; it does not include the PC, driving controls, display/VR hardware, or software licenses needed to run the demo.
Key Specifications:
•Four complete SFX-100 linear actuators with 100 mm total actuator stroke
•Four Rattmotor YPMC-750W 240V servo motor kits with drivers
•2.4 N·m rated torque per servo motor
•1605 ball screws (5 mm linear travel per revolution)
•Approximate actuator speed: 208 mm/s at 120 VAC; 417 mm/s at 240 VAC, based on motor speed and 5 mm screw lead
•Arduino Leonardo SFX-100 controller with firmware installed
•SimHub 9.11.21 profile included: SFX_100 3DOF General Profile 08012026
•Approximate assembled rig dimensions: 53 in. L × 27 in. W × 50 in. H
•Approximate assembled rig weight: 150 lb, excluding the Vevor server cabinet
Included in the Sale
•Next Level Racing Challenger Simulator Cockpit
•Next Level Racing frame
•Next Level Racing adjustable seat with slider
•Next Level Racing adjustable pedal plate
•Next Level Racing adjustable wheel stand
•Next Level Racing monitor stand; included, but not recommended for use while the rig is in motion
•Custom-built 1.5 in. steel tubular frame
•Four complete SFX-100 actuators
•A few spare actuator sliders
•Vevor 9U server cabinet
•Four Rattmotor YPMC-750W servo motor kits and drivers
•Arduino Leonardo controller with installed SFX-100 firmware
•StarTech 8-outlet horizontal 120 VAC rack PDU
•Powered USB 2.0 hub
•Printed quick-reference packet, including startup/shutdown guidance and the included/excluded-items list
•Physical servo-driver manual with changed parameters highlighted
•Thumb drive with the digital documentation and files listed below
Not Included
•PC
•Meta Quest 3 headset
•Moza R9 wheelbase
•Fanatec CSL Elite V3 pedals
•Wall-mounted Hisense monitor
•SimHub licenses, including the Motion Add-on license
•Game software
•Witmotion WT901C-232 9-Axis Vibration Inclinometer
•USB cables
•Physical custom 3D-printed Moza R9-to-NLR wheel-stand adapter
Demo and Buyer Requirements
A live demonstration is available and encouraged before purchase. Some equipment required to operate the demonstration is specifically excluded from the sale, including the PC, headset, wheelbase, pedals, monitor, USB cables, and Witmotion inclinometer. Use of those items during the demonstration does not mean they are included.
Buyer will need to supply a Windows PC, game software, SimHub installation and licenses, game telemetry setup, display or VR hardware, wheelbase, pedals, and USB cables.
The included system can be configured for either of the following:
•120 VAC operation: Servo drivers can be configured to operate from the included 120 VAC PDU. This mode provides reduced actuator speed and was used successfully for many sessions.
•240 VAC operation: A buyer-supplied 240 VAC power supply is required for higher-speed operation.
Operation
Sale Terms
•Local pickup in League City, TX only; shipping is not offered.
•Buyer is welcome to inspect and test the motion system before purchase.
•Reasonable setup questions will be answered within 1–2 business days for 30 days after sale.
•No remote tuning, warranty, or refunds.
Serious inquiries only, please.
Asking price: $2,100
Location: League City, TX
Contact:
Custom-built, fully functional SFX-100 3DOF sim racing motion rig. A live demonstration is available and encouraged for serious buyers. The rig was last used on August 11, 2026 before decommissioning.
This is a complete motion cockpit and control package; it does not include the PC, driving controls, display/VR hardware, or software licenses needed to run the demo.
Key Specifications:
•Four complete SFX-100 linear actuators with 100 mm total actuator stroke
•Four Rattmotor YPMC-750W 240V servo motor kits with drivers
•2.4 N·m rated torque per servo motor
•1605 ball screws (5 mm linear travel per revolution)
•Approximate actuator speed: 208 mm/s at 120 VAC; 417 mm/s at 240 VAC, based on motor speed and 5 mm screw lead
•Arduino Leonardo SFX-100 controller with firmware installed
•SimHub 9.11.21 profile included: SFX_100 3DOF General Profile 08012026
•Approximate assembled rig dimensions: 53 in. L × 27 in. W × 50 in. H
•Approximate assembled rig weight: 150 lb, excluding the Vevor server cabinet
Included in the Sale
•Next Level Racing Challenger Simulator Cockpit
•Next Level Racing frame
•Next Level Racing adjustable seat with slider
•Next Level Racing adjustable pedal plate
•Next Level Racing adjustable wheel stand
•Next Level Racing monitor stand; included, but not recommended for use while the rig is in motion
•Custom-built 1.5 in. steel tubular frame
•Four complete SFX-100 actuators
•A few spare actuator sliders
•Vevor 9U server cabinet
•Four Rattmotor YPMC-750W servo motor kits and drivers
•Arduino Leonardo controller with installed SFX-100 firmware
•StarTech 8-outlet horizontal 120 VAC rack PDU
•Powered USB 2.0 hub
•Printed quick-reference packet, including startup/shutdown guidance and the included/excluded-items list
•Physical servo-driver manual with changed parameters highlighted
•Thumb drive with the digital documentation and files listed below
Not Included
•PC
•Meta Quest 3 headset
•Moza R9 wheelbase
•Fanatec CSL Elite V3 pedals
•Wall-mounted Hisense monitor
•SimHub licenses, including the Motion Add-on license
•Game software
•Witmotion WT901C-232 9-Axis Vibration Inclinometer
•USB cables
•Physical custom 3D-printed Moza R9-to-NLR wheel-stand adapter
Demo and Buyer Requirements
A live demonstration is available and encouraged before purchase. Some equipment required to operate the demonstration is specifically excluded from the sale, including the PC, headset, wheelbase, pedals, monitor, USB cables, and Witmotion inclinometer. Use of those items during the demonstration does not mean they are included.
Buyer will need to supply a Windows PC, game software, SimHub installation and licenses, game telemetry setup, display or VR hardware, wheelbase, pedals, and USB cables.
The included system can be configured for either of the following:
•120 VAC operation: Servo drivers can be configured to operate from the included 120 VAC PDU. This mode provides reduced actuator speed and was used successfully for many sessions.
•240 VAC operation: A buyer-supplied 240 VAC power supply is required for higher-speed operation.
Operation
Sale Terms
•Local pickup in League City, TX only; shipping is not offered.
•Buyer is welcome to inspect and test the motion system before purchase.
•Reasonable setup questions will be answered within 1–2 business days for 30 days after sale.
•No remote tuning, warranty, or refunds.
Serious inquiries only, please.
