Fanatec CSL DD (8 Nm) FullForce

Fanatec · Wheel Base

8 Nm: what this means

Peak torque

The hardest the wheel base can push back, measured in newton-meters. It is a ceiling rather than a setting: most people run well below the maximum, and the number matters less than how cleanly the base delivers what it does produce.

Read the rest →

Direct drive: what this means

Direct drive

The steering wheel bolts straight onto the motor's shaft, with no belts or gears in between. Nothing sits between you and the forces the game is sending, so curbs, grip loss, and the front tires loading up arrive sharply and in the right order.

Read the rest →

FullForce: what this means

FullForce

Fanatec's name for force feedback that adds high-frequency effects on top of the steering forces: engine vibration, gear shifts, and road texture, played through the wheel base's own motor.

Read the rest →

Fanatec QR2: what this means

Quick release

The coupling that holds the steering wheel onto the base and lets you swap wheels without tools. Each manufacturer has its own, and they do not interchange: a Fanatec wheel does not fit a Moza base because the couplings are different shapes.

Read the rest →

An 8 Nm direct-drive wheel base for PC and Xbox setups using compatible Fanatec wheels.

  • PCSupported
  • PlayStationNot supported
  • XboxNeeds Xbox-ready wheel
Compare
$479.99 $455.99You save $24 with code GTPLANET5
Price range over the past 2 months: $399.99–$479.99. This is the highest we have seen it. Prices checked daily.

Get Price Alerts

Get an email when only this product goes on sale, drops in price, or comes back in stock. One-click unsubscribe; view our privacy policy.

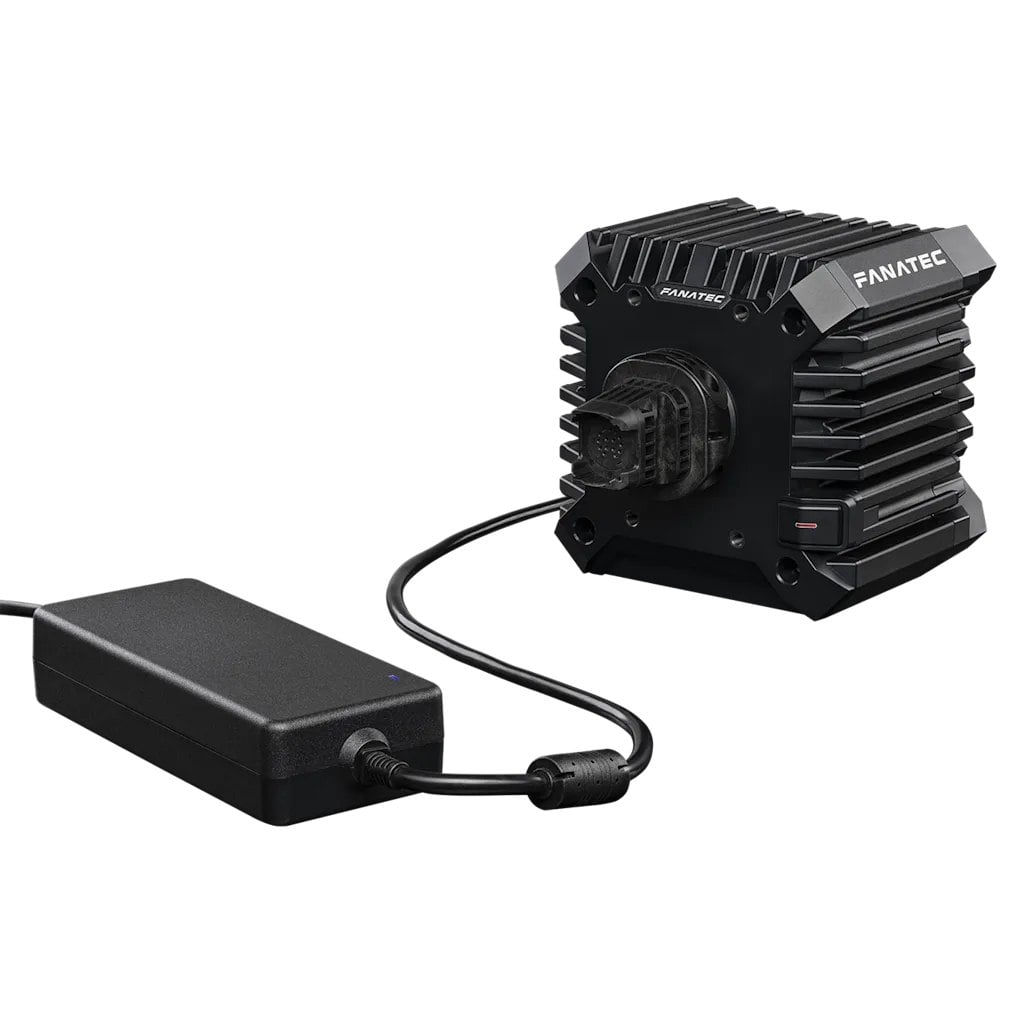

The CSL DD 8 Nm is Fanatec's entry direct drive base with the Boost Kit 180 power supply included, which raises it from 5 Nm to 8 Nm. Direct drive gives smooth, quick, detailed steering, and 8 Nm is where heavy cars and fast corners start to feel properly weighty on a desk. FullForce adds high-frequency detail in supported games. It takes Fanatec wheels on the QR2 quick release, and Fanatec pedals, shifters, and handbrakes plug into it. It works with PC, and with Xbox when paired with an Xbox-licensed Fanatec wheel, but not with PlayStation. A CSL DD Table Clamp is sold separately for desks, and T-nut rails take it to a rig.

CSL DD 8 Nm vs. CSL DD 5 Nm

The 5 Nm CSL DD is the same base with the standard power supply. It feels just as smooth and detailed, only lighter, and the Boost Kit 180 brings it up to 8 Nm later. It is the way in if the budget is tight.

CSL DD 8 Nm vs. Logitech RS50 Base

Logitech's RS50 Base matches the 8 Nm and brings TRUEFORCE, Logitech's version of high-frequency detail. Its range of wheels and pedals is smaller than Fanatec's, but older G-series pedals carry over through the Racing Adapter, and it also needs a clamp bought separately.

CSL DD 8 Nm vs. ClubSport DD

The ClubSport DD is Fanatec's step up, at 15 Nm on the same QR2 quick release, so your wheels and pedals move across. The extra strength suits a rigid cockpit more than a desk.

Specifications

Peak Torque8 Nm
Drive TypeDirect drive
Force Feedback TechnologyFullForce
Quick ReleaseFanatec QR2

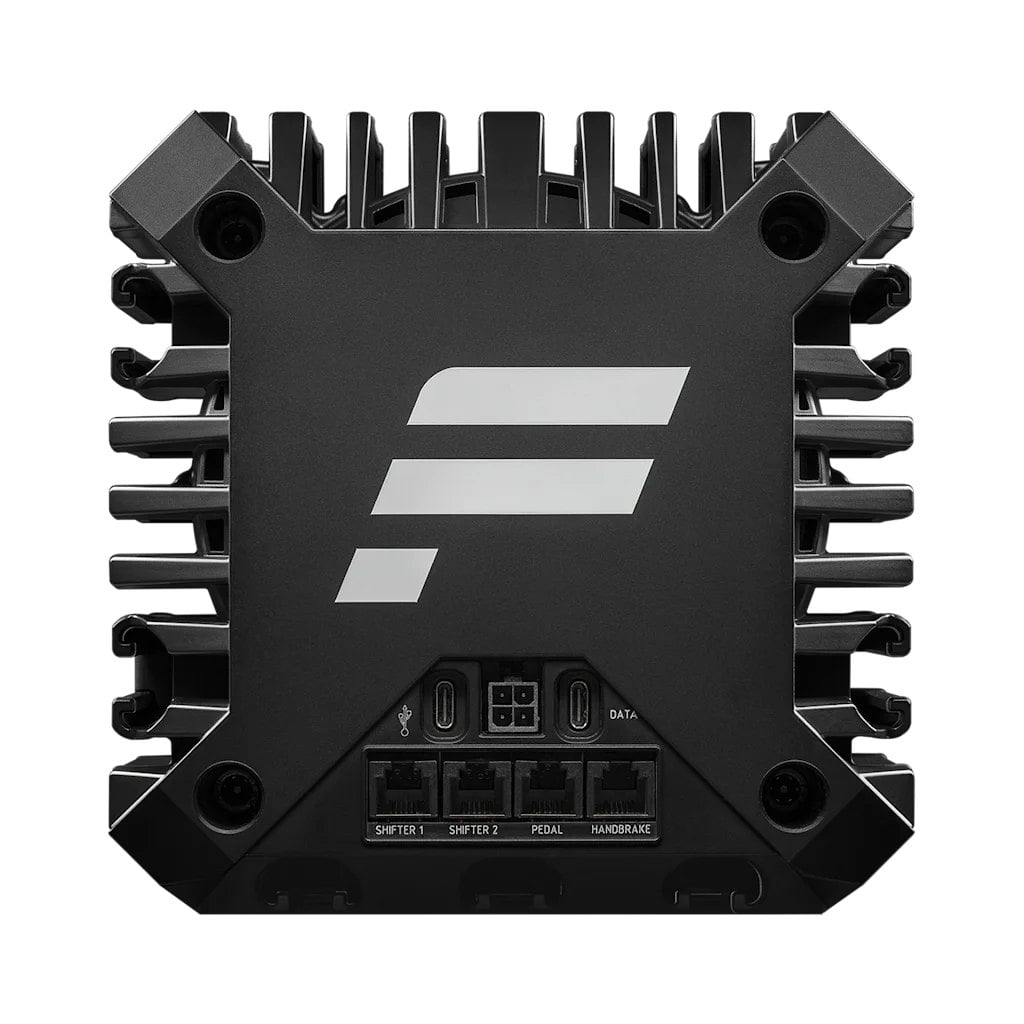

Pedal PortRJ12
Accessory PortRJ12
MountingBoth
Maximum Rotation2,520°
Desk Mounting HardwareNot included
Fanatec Console LicensePC
Platform Compatibility
PC: Supported
PlayStation: Not supported
Xbox: Needs Xbox-ready wheel

Platform support can depend on what this is connected to. Add it to a build to check your setup.

Works With

Steering Wheels 71 fit
Show all 71 compatible steering wheelsShow fewer steering wheels
28 checked and do not fit
Wheel Hubs 5 fit
Show all 5 compatible wheel hubsShow fewer wheel hubs
  • Fanatec Wheel Hub
    Fanatec Wheel Hub Direct fitDirect fit: both use the Fanatec QR2 quick release.
  • Podium Hub
    Podium Hub Direct fitDirect fit: both use the Fanatec QR2 quick release.
2 checked and do not fit
Pedals 13 fit
  • ClubSport Pedals V3
    ClubSport Pedals V3 Direct fitConnects through the base pedal port, so the pedals work wherever the base does, including on console. Also connects by USB: Plugs into the PC with its own USB cable, so this only works on PC.
  • CSL Pedals
    CSL Pedals Direct fitConnects through the base pedal port, so the pedals work wherever the base does, including on console.
  • Podium Pedals Sport
    Podium Pedals Sport Direct fitConnects through the base pedal port, so the pedals work wherever the base does, including on console. Also connects by USB: Plugs into the PC with its own USB cable, so this only works on PC.
Show all 13 compatible pedalsShow fewer pedals
  • CSL Elite Pedals V2
    CSL Elite Pedals V2 Direct fitConnects through the base pedal port, so the pedals work wherever the base does, including on console. Also connects by USB: Plugs into the PC with its own USB cable, so this only works on PC.
  • CSL Pedals LC
    CSL Pedals LC Direct fitConnects through the base pedal port, so the pedals work wherever the base does, including on console. Also connects by USB: Plugs into the PC with its own USB cable, so this only works on PC.
  • ClubSport Pedals V3 Inverted
    ClubSport Pedals V3 Inverted Direct fitConnects through the base pedal port, so the pedals work wherever the base does, including on console. Also connects by USB: Plugs into the PC with its own USB cable, so this only works on PC.
  • Podium Pedals Formula
    Podium Pedals Formula Direct fitConnects through the base pedal port, so the pedals work wherever the base does, including on console. Also connects by USB: Plugs into the PC with its own USB cable, so this only works on PC.
  • RS Pedals
    RS Pedals PC onlyPlugs into the PC with its own USB cable, so this only works on PC.
  • PRO Racing Pedals
    PRO Racing Pedals PC onlyPlugs into the PC with its own USB cable, so this only works on PC.
  • Raceline Pedals III LC
    Raceline Pedals III LC PC onlyPlugs into the PC with its own USB cable, so this only works on PC.
  • CRP2 Load Cell Pedals (Throttle+Brake)
    CRP2 Load Cell Pedals (Throttle+Brake) PC onlyPlugs into the PC with its own USB cable, so this only works on PC.
  • SRP2 Pedals
    SRP2 Pedals PC onlyPlugs into the PC with its own USB cable, so this only works on PC.
  • mBooster Active Pedal Set (with CRP2 Throttle)
    mBooster Active Pedal Set (with CRP2 Throttle) PC onlyPlugs into the PC with its own USB cable, so this only works on PC.
6 checked and do not fit
  • Raceline Pedals LTE
    Raceline Pedals LTE Does not fitThese pedals plug into a wheel base, and this base doesn't have the right port.
  • 2 PEDAL SET-T150/T80/SPIDER
    2 Pedal Set-T150/T80/Spider Does not fitThese pedals plug into a wheel base, and this base doesn't have the right port.
  • 2-PEDAL PEDAL SET - T300RS
    2-Pedal Pedal Set - T300RS Does not fitThese pedals plug into a wheel base, and this base doesn't have the right port.
  • RACELINE PEDALS III
    RACELINE PEDALS III Does not fitThese pedals plug into a wheel base, and this base doesn't have the right port.
  • T2PM
    T2PM Does not fitThese pedals plug into a wheel base, and this base doesn't have the right port.
  • Thrustmaster T3PM pedals
    T3PM Does not fitThese pedals plug into a wheel base, and this base doesn't have the right port.
Shifters 7 fit
  • ClubSport Shifter SQ V1.5
    ClubSport Shifter SQ V1.5 Direct fitPlugs into the base accessory port, so it works wherever the base does, including on console. Also connects by USB: Plugs into the PC with its own USB cable, so this only works on PC.
  • HGP Shifter
    HGP Shifter Direct fitPlugs into the base accessory port, so it works wherever the base does, including on console. Also connects by USB: Plugs into the PC with its own USB cable, so this only works on PC.
  • SGP Sequential Shifter
    SGP Sequential Shifter Direct fitPlugs into the base accessory port, so it works wherever the base does, including on console. Also connects by USB: Plugs into the PC with its own USB cable, so this only works on PC.
Show all 7 compatible shiftersShow fewer shifters
Handbrakes 3 fit
  • ClubSport Handbrake V2
    ClubSport Handbrake V2 Direct fitPlugs into the base accessory port, so it works wherever the base does, including on console. Also connects by USB: Plugs into the PC with its own USB cable, so this only works on PC.
  • HBP Handbrake
    HBP Handbrake PC onlyPlugs into the PC with its own USB cable, so this only works on PC.
  • TSS Handbrake
    TSS Handbrake PC onlyPlugs into the PC with its own USB cable, so this only works on PC.
Cockpits 55 fit
  • GTRacer 2.0
    GTRacer 2.0 Direct fitThrough the GTRacer 2.0 Frame in the bundle. Bolts to the cockpit wheel deck. Check the deck hole pattern matches the base.
  • F-GT Lite
    F-GT Lite Direct fitBolts to the cockpit wheel deck. Check the deck hole pattern matches the base.
  • CSL Cockpit V1.5
    CSL Cockpit V1.5 Direct fitBolts to the cockpit wheel deck. Check the deck hole pattern matches the base.
Show all 55 compatible cockpitsShow fewer cockpits
Wheel Stands 4 fit
Show all 4 compatible wheel standsShow fewer wheel stands
  • Wheel Stand 2.0
    Wheel Stand 2.0 Direct fitBolts to the stand wheel plate. Check the plate hole pattern matches the base.
Desk Mounts 2 fit
  • Fanatec CSL DD Table Clamp
    CSL DD Table Clamp Direct fitFits the CSL DD and Gran Turismo DD Pro. Fits desks 5-60 mm thick.
  • Fanatec ClubSport DD Table Clamp
    ClubSport DD Table Clamp Direct fitFits the CSL DD, Gran Turismo DD Pro, ClubSport DD, and DD+. Fits desks 5-60 mm thick, but not glass tables.
Show other desk mountsShow fewer desk mounts
4 not verified
Cockpit Accessories 3 fit
Show other cockpit accessoriesShow fewer cockpit accessories
3 not verified
Adapters 3 fit
  • QR2 Pro Wheel-Side
    QR2 Pro Wheel-Side Direct fitThis adapter mounts on a Fanatec QR2 base side.
  • QR2 Wheel-Side
    QR2 Wheel-Side Direct fitThis adapter mounts on a Fanatec QR2 base side.
  • Racing Adapter
    Racing Adapter PC onlyThe Racing Adapter connects directly to the PC, not to this base.
Show other adaptersShow fewer adapters
5 checked and do not fit

“Not verified” means we haven’t confirmed that combination yet.
