GTPlanet |Drift Tuning Guide | Brought to you by teamJDMT

Discussion in 'GT6 Drifting' started by JDM SRE70, Apr 15, 2014.

  1. JDM SRE70

    JDM SRE70

    Messages:
    1,878
    Location:
    Australia
    GTPlanet Drift Tuning Guide

    Assuming you’re new to the motorsport of drifting, I’d like to start on this note. As a drifter having experience both in the real world and the virtual world. There has never been one tune that is perfect for everyone and makes everyone the “Drift King”. Drifting is something which is primarily based on Driver Style. This maybe “aggressive”, “Smooth & Slow” or “Angle hunter”. We as drivers have varying capabilities, and different styles of driving. Therefore a tune is something personal, almost like your finger print no one can replicate you skill level through ‘your’ tune.

    Here you’ll find out about
    -Choosing a Chassis

    -Tuning Your Chassis

    -Tuning your Motor

    -Tuning your suspension

    -Tuning your brakes

    Choosing a Chassis.

    Choosing a chassis, isn’t as difficult as it sounds. You can base it off the aesthetics, or take a more theoretical approach and try and cater for your driving style.

    · Long Wheelbase- Long Wheel based vehicles are naturally more stable then Short Wheelbase chassis due to from mass spread over a larger surface area. This also brings in the concept of momentum, making it so that the vehicle go’s through a corner with more momentum allowing the vehicle to slide through the corner with ease. However this can backfire depending on your style, if you tend to “throw in” your car into a corner it may just over-rotate and you’ll end up looking the other way.

    · Short Wheelbase- Short Wheelbase chassis are naturally more nimble and responsive. However having less mass spread over a surface area reduces its capability of stability. So you may find it twitchy. Once again the concept of momentum kicks in, as you will have smaller mass the chassis may lose momentum through a corner which may straighten you out. Short wheelbase vehicles are more suited towards people who have an ‘aggressive’ style.

    · Chassis Weight Reduction- Reducing the weight of your vehicle sounds like a no brainer, right? Lower the power the weight ratio, the faster you will drift? Sometimes this isn’t the case, having more weight will result increasing grip, and reducing the tendency of having a bumpy and jumpy ride. Also increasing momentum during drifts it will help you glide through corners with ease. Then there’s a balance of weight reduction, where your car doesn’t feel too boaty and not too twitchy. Creating a perfect balance and an overall universal tune for all tracks. This will depend on the driver’s style, for me.

    In my case my disadvantage is virtual g-force, I can’t tell if I’m gathering enough of it to initiate into a drift, hence why I tend to go for a heavier chassis which can guarantee enough momentum to break traction and get into a drift. However in reality, I drive a light weight chassis with engine with moderate power, and there is no struggle to initiate as I can feel the g-forces indicating that I’m breaking traction.

    Choosing an engine.

    As a car enthusiast we all know that the Engine is the heart of any vehicle. An engine combined with the right chassis can lead to you being the next ‘Drift King’, as long as it caters to your driving style.
    · Displacement- A engine with larger displacement will generally create more power and torque in comparison to an engine with smaller displacement. However you have to consider the fact that a vehicle with larger displacement will generally be a heavier block therefore affecting the Weight Distribution of the vehicle. Depending on your style and track, you may opt for a smaller displacement so you can floor it more i.e 300hp 1.6L 4AGE, or if you have a light foot you may vouch for a 600hp 5.7L LS3.
    · Torque- Torque being the force produced by the engine, will determine how quickly you can create the power, too little torque will may affect how you initiate and exit a corner. Preferably you’ll want a sufficient amount to pull away from a corner at typical speeds. But remember, you have to be able to put the power down, so don’t make it all about torque. Sometimes a little less torque will help you get the power down to the ground.
    · Horsepower- Horsepower a measure of force produced over time. This will determine your ability to attain your top speed, so keeping momentum of the wheels. You’ll need a sweet spot depending on the chassis you have chosen. Having too little might not be enough to carry you through the corner, having too much may cause you to spin. Hitting the sweet spot will help you get the balance of enough grip to accelerate through corners and still have the wheels spinning at the back so you’re still drifting.

    Everything in performance is a trade-off: lower end power will mean that you are sacrificing high end peak power, which is going to reflect your top speed. Which is more important will depend on the specifics of the car - it's weight, it's gearing, how much grip you have with the drive wheels: any torque more than you can successfully transfer to the ground through the transmission and the limits of tire traction is wasted and will probably gain you more in peak power... any peak power more than your gearing's top speed (and the likely top speed of a run) is likewise wasted power that could probably be better used on the low end.
    Suspension-

    · Ride Height-
    Ride Height, the lower ride height, the lower the cars centre of gravity, and the better it will handle, but set it too low and the suspension will bottom out. As an affect it will cause your car to jolt and jump. Handling characteristics can also be influenced by introducing different heights between the front and rear of the vehicle. Having the front end lower than the rear will increase oversteer, while raising it up will increase understeer.
    · Spring Rate- Spring rates determine the pitch and roll ability of the vehicle. Having a softer spring rate will cause the car to pitch and roll increasing momentum. Specific adjustments can be made to help manipulate the vehicles handling characteristics. Such as the front being softer than those in the rear to encourage oversteer, or the front being tighter than the rear for more understeer.
    · Dampers- Dampers control the firmness of the damper (Compression and Extension). Dampers limit the amount of stretch in the suspensions springs, thereby minimising unnecessary chassis movement. If the dampers are too firm during suspension compression, then suspension movement will be limited and stiff, causing the car to judder and jump. Dampers are usually stiffer on extension then compression, but making them too stiff will inhibit the movement of the springs, making the load movement much harder to control.
    · Anti-Roll Bars- Anti Roll bars allow you to influence how much your car will roll laterally and how fast. Adjusting your anti roll bars behave the same as spring rates, however only controlling the lateral movement. Having different stiffness to the front and rear of the vehicle determines oversteer and understeer. (Refer to spring rates on how it affects handling characteristics.)
    · Camber- Camber is the angles of your wheels vertical axis, and they will be your primary tool to dialling in your perfect setup. Camber affects the contact patch of your tires, having too much will decrease grip and decrease your braking ability. Too little and your car may be too grippy. Adjusting your front and rear camber will help you to alter the grip balance between the front and rear. Having Negative camber in the rear will help you break traction quicker, but once you’ve initiated the sideways momentum may cause you to spin out. Negative camber in the front, will increase understeer, which is good whilst you’re sliding. Depending on your entry style, I.E Scandinavian Flick will not be as effective as there is no grip in the front. Therefore initial turn in maybe daft.
    · Toe- Toe is the angle of your wheels facing inward or outward. Toe IN is positive angle where how much the wheels are pointing inwards, whilst Toe OUT is how much the wheel is pointing outwards. Generally speaking, the more inwards your wheels are facing the more stable your vehicle will be. Giving the front end a toe in angle will increase understeer, while a toe out will improve steering response. Giving the rear wheels a toe-in angle will improve stability both when moving forward and when turning, but will also increase understeer.
    Differential-

    · Initial Torque –
    Is the amount of pressure exerted, simply how much torque you will be putting down whilst going straight which is when your differential will be 100% locked. Having it on a low setting will create a smoother more un-predictable change in handling. Having it on a high setting will be more predictable, however will increase understeer.
    · Acceleration Sensitivity- Is the amount of pressure exerted under acceleration, a higher setting will lock the differential more therefore putting more power on the road. A lower setting will open the differential causing the vehicle to turn in better, however reducing likeliness for oversteer. For Drifting it is recommended you use a high setting.
    · Deceleration Sensitivity- Is the amount of pressure exerted under braking, a higher setting will lock the differential more therefore inhibiting the ability for the wheels to spin at a different speed. You’ll want to strike a balance with this so you don’t understeer or oversteer.

    Brakes-

    · Brakes-
    Adjusting the sensitivity of the front and rear brakes independently will severely affect your chosen vehicles performance. Having a Front Brake bias, will allow the vehicles weight to transfer to the front end, causing the rear end to lift and break traction. It will also help with left foot braking and heel and toe without the rear gaining traction. Personally I would implement this for a chassis with low torque. Whilst a Rear Brake Bias, will also have the same effect depending on how much your ABS System is set to. Eventually braking traction, however you will transfer the internal weight to the rear end, increasing inertia at the rear end may result in additional over rotation.
    Depending on the situation, either is good. If your style is more so aggressive in entries you may opt for the front brake bias, and vice versa.
    _________________________________________________________________________________________


    Ultimately all systems of a vehicle work in synergy to perform. Striking a balance between all of them to cater towards your driving style will lead to your success in the world of Drifting. I wish you all the best of luck.

    Proudly supported and created by the team here at teamJDMT.
    A kind thanks to JZX90 (R.I.P) Never to be forgotten.

    Last edited: Apr 17, 2014
    JockeP22, Aaroh, kwentyne and 23 others like this.
  2. BayouSimDrifter

    BayouSimDrifter

    Messages:
    2,242
    Location:
    United States
    good stuff :tup:

    GTGranpa, Eric1512 and JDM SRE70 like this.
  3. FussyFez

    FussyFez

    Messages:
    1,440
    Location:
    United Kingdom
    Great stuff just spotted one error:


    Suspension-

    · Ride Height-
    Ride Height, the lower ride height, the lower the cars centre of gravity, and the better it will handle, but set it too low and the suspension will bottom out. As an affect it will cause your car to jolt and jump. Handling characteristics can also be influenced by introducing different heights between the front and rear of the vehicle. Having the front end lower than the front will increase oversteer, while raising it up will increase understeer.



    Also, whilst alot (if not all) of this is true for real life, certain things like camber and ride height, arguably are not working as expected, in GT6 at this time.

    I personally would add a little note, linking to the relevant discussion of each of the questionable settings. Just what I'd do personally mind, you have done a great job :tup:

  4. ghostthief980

    ghostthief980

    Messages:
    956
    Location:
    United States
    Nice thread keep it up.

    GTGranpa, Eric1512 and JDM SRE70 like this.
  5. JDM SRE70

    JDM SRE70

    Messages:
    1,878
    Location:
    Australia
    Thanks for pointing that out, i didn't want to put what 'i'd do' only because i felt that it gave people the chance to have a go at the thread, also my setups aren't exactly typical of everyone else haha

    GTGranpa, ReDMySTiC and FussyFez like this.
  6. twitcher

    twitcher

    Messages:
    5,703
    Great work guys, really well done :tup:

    Any plans to add discussion about brakes, and weight ballance? And perhaps weight in general (I'm getting at the idea that full weight reduction is not always the best route, depending on the aim of the tune).

    DriftRyuji, GTGranpa and Eric1512 like this.
  7. JDM SRE70

    JDM SRE70

    Messages:
    1,878
    Location:
    Australia
    Definitely will be, i was just to lazy to write it all in the one go. Might get onto it Morrow.

  8. twitcher

    twitcher

    Messages:
    5,703
    I wouldn't classify writing that in one go as "lazy" :lol: Again, well done!

    FussyFez and JDM SRE70 like this.
  9. TH137Z

    TH137Z

    Messages:
    647
    Location:
    Australia
    Nice. I also agree about adding in the weight balance and brake set up. and out of curiousity, will you be explaining the different ways the brakes are set up game wise??? For example, someone without a handbrake might use a higher rear brake balance?

    GTGranpa, SLaBaTaC and DriftRyuji like this.
  10. JDM SRE70

    JDM SRE70

    Messages:
    1,878
    Location:
    Australia
    Will do.

  11. JDM SRE70

    JDM SRE70

    Messages:
    1,878
    Location:
    Australia
    Brakes- Adjusting the sensitivity of the front and rear brakes independently will severely affect your chosen vehicles performance. Having a Front Brake bias, will allow the vehicles weight to transfer to the front end, causing the rear end to lift and break traction. Personally I would implement this for a chassis with low torque. Whilst a Rear Brake Bias, will also have the same effect depending on how much your ABS System is set to. Eventually braking traction, however you will transfer the internal weight to the rear end, increasing inertia at the rear end may result in additional over rotation.

    Depending on the situation, either is good. If your style is more so aggressive in entries you may opt for the front brake bias, and vice versa.

    Chassis Weight Reduction- Reducing the weight of your vehicle sounds like a no brainer, right? Lower the power the weight ratio, the faster you will drift? Sometimes this isn’t the case, having more weight will result increasing grip, and reducing the tendency of having a bumpy and jumpy ride. Also increasing momentum during drifts it will help you glide through corners with ease. Then there’s a balance of weight reduction, where your car doesn’t feel too boaty and not too twitchy. Creating a perfect balance and an overall universal tune for all tracks. This will depend on the driver’s style, for me.

    In my case my disadvantage is virtual g-force, I can’t tell if I’m gathering enough of it to initiate into a drift, hence why I tend to go for a heavier chassis which can guarantee enough momentum to break traction and get into a drift. However in reality, I drive a light weight chassis with engine with moderate power, and there is no struggle to initiate as I can feel the g-forces indicating that I’m breaking traction.


    EDIT: Sorry i forgot i had a post above.

    GTGranpa and twitcher like this.
  12. twitcher

    twitcher

    Messages:
    5,703
    Nice addition.

    In regards to the brakes: I run a front heavy bias (usually 4/1, 3/1, 3/0, varies from car to car). The main reason I do this, is because it allows me to get really aggressive with my left foot braking while chasing.

    I'll use about 1/4 to 1/2 pressure on the foot brake (a I use L2), while working the throttle. This causes the rear of the car to pivot around the nose, allowing you to increase angle, while maintaining or decreasing drift speed.

    Through my own testing (after the encouragement from a couple teammates who chasing abilities I've got mad respect for :) ), I settled on 3 or 4 in the front, as that's the amount of pressure I feel comfortable controlling smoothly. I settled on 0 or 1 in the rear as I found anything stronger really interfered with my throttle work while braking, causing under steer.

    In heavier, high torque cars (SRT8 Charger), I run 1 in the rear, as the engine doesn't struggle to overpower the brakes, and the 1 helps slow the pig down. In lighter, under powered cars (Bluebird 1600 Delux), I run 0 in the rear, as this allows the engine to rev freely under braking, and the car is so light you don't really miss the rear brakes.

    noneYet, Tetsu_X, FARM EAGLE and 3 others like this.
  13. TH137Z

    TH137Z

    Messages:
    647
    Location:
    Australia
    I use the exact same setup. Although I try going for the 5 on front if I can. It has helped my tandeming out heaps in a stupidly short amount of time. I am however on a g27 with a aftermarket heavy duty progressive brake spring. I have found however that even with the rear set to off, the rear wheels still seem to catch grip over time or under too harsher braking. Not sure if that's the way I've tuned the cars or whether I'm utilizing gt6s fake traction control. Left foot braking in a 1000hp viper so you can sit on a 250hp Silvia on most tracks feels pretty impressive also.

    twitcher and JDM SRE70 like this.
  14. JDM SRE70

    JDM SRE70

    Messages:
    1,878
    Location:
    Australia
    @TH137Z Pointed this out to me in a conversation not too long ago, and i tweaked what i wrote in the OP Just a tad :)
    Honestly i don't think i've ever played with the brake bias too much. If anything i use a 4/6 setup. I personally believe that it's all in the differential, and foot work. Under deceleration letting the differential open up, will allow me to pivot around the nose, however if i feel it is about to spin. I will lock the differential by giving it blips of the throttle. Also i've noticed that with Front brake bias alot of people slow down really quick, almost to the point where it feels as if you're brake checked. Depending on the style of the driver it may be better to use a Rear Brake bias if you're brake foot happy. I'm not saying front brake bias is bad, i'm just highlighting that it depends on driver style.

    noneYet, GTGranpa and FussyFez like this.
  15. TH137Z

    TH137Z

    Messages:
    647
    Location:
    Australia
    That's for sure, I'm probably the worse for it too being as I still run 5 on the front even in little cars, and I find that it hasn't stopped my braking potential. Although I find its main purpose is to slow the car down just enough to match the leaders pace whilst not upsetting the car, your line or your own momentum the way a rear brake set up or handbrake would. It still depends on the drivers style like you said. Way I picture it is, I have a hand brake, I don't need back brakes.....

    twitcher likes this.
  16. alpacaflip

    alpacaflip

    Messages:
    791
    Location:
    United States
    Yeah LSD does effect brakes. I run 1.5 and 2 way diffs at different strengths due to different cars react in different ways. I always run no ABS with higher rear power than front. I start with 2/5, then work from there depending on the car again. But like you said it's all down to driver style. I'm horrible at leading and get overly aggressive chasing.

    SmokedBump and JDM SRE70 like this.
  17. ACGreen86

    ACGreen86

    Messages:
    133
    Location:
    United States
    I remember someone did some research on Ride Height in GT5, and found that the settings were backwards. Raising the rear was increasing the understeer, while raising the front was increasing oversteer (which is backward from real cars).
    Is it still that way in GT6?

  18. TH137Z

    TH137Z

    Messages:
    647
    Location:
    Australia
    No, they have fixed this bug. However it doesn't make a huge difference in handling having front higher than the rear or vice versa. The ridehieght is a large part of tuning and I've found that running a near stock ride height really helps with grip.

    JDMTuningFD3S likes this.
  19. ACGreen86

    ACGreen86

    Messages:
    133
    Location:
    United States
    Ah, I see now. That's why all the drag racer cars are sky high then.

  20. JDMTuningFD3S

    JDMTuningFD3S

    Messages:
    116
    Location:
    Australia
    When you lower the rear of a car you give it more 'rake' which increases the load on the rear tyres therefore giving you more oversteer. As with anything, too much and it wont handle properly. Finding that balance with front to rear weight on ride height is a crucial part of the cars setup and hiw it will behave.

    Cheese7killer, TH137Z and JDM SRE70 like this.
  21. p3bucky

    p3bucky

    Messages:
    707
    Location:
    United States

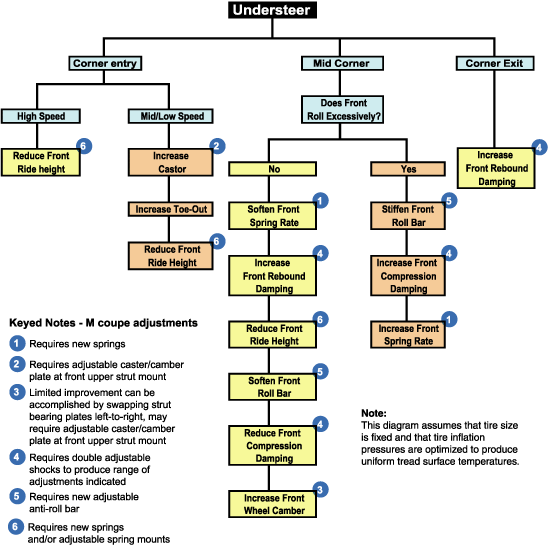

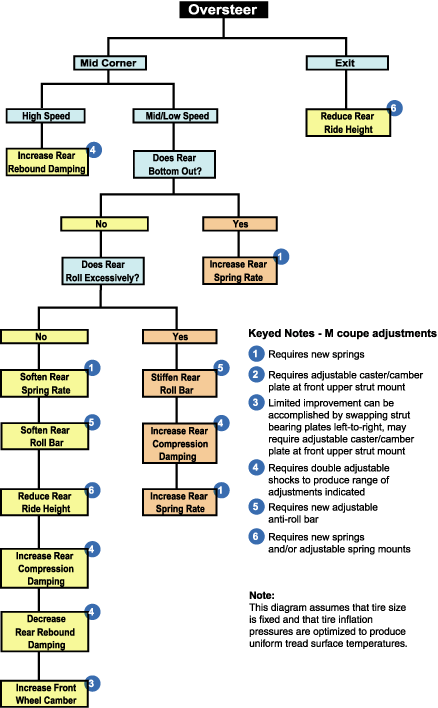

    These pictures have came in handy for suspension tuning. They're meant for racing tunes but they still help.
    [​IMG]

    [​IMG]

    Khel46, noneYet, 194GVan and 6 others like this.
  22. MrRollback

    MrRollback

    Messages:
    60
    Location:
    United States
    Wow. Really helpful chart. Who made these charts anyway? You or another person? Cause if it was you, I give you major props.

  23. p3bucky

    p3bucky

    Messages:
    707
    Location:
    United States
    No, I didn't make them haha. I pulled them from google :p
