Moza R9 V3 Direct Drive Wheel Base

Moza Racing · Wheel Base

9 Nm: what this means

Peak torque

The hardest the wheel base can push back, measured in newton-meters. It is a ceiling rather than a setting: most people run well below the maximum, and the number matters less than how cleanly the base delivers what it does produce.

Read the rest →

Direct drive: what this means

Direct drive

The steering wheel bolts straight onto the motor's shaft, with no belts or gears in between. Nothing sits between you and the forces the game is sending, so curbs, grip loss, and the front tires loading up arrive sharply and in the right order.

Read the rest →

Moza QR: what this means

Quick release

The coupling that holds the steering wheel onto the base and lets you swap wheels without tools. Each manufacturer has its own, and they do not interchange: a Fanatec wheel does not fit a Moza base because the couplings are different shapes.

Read the rest →

A 9 Nm direct-drive wheel base for PC sim racers seeking detailed force feedback.

  • PCSupported
  • PlayStationNot supported
  • XboxNot supported
Compare
$349 $299 on saleSave 14% You save $50
Unchanged at $299 over the past 2 months. Prices checked daily.
Buy at Moza Racing Store

Get Price Alerts

Get an email when only this product goes on sale, drops in price, or comes back in stock. One-click unsubscribe; view our privacy policy.

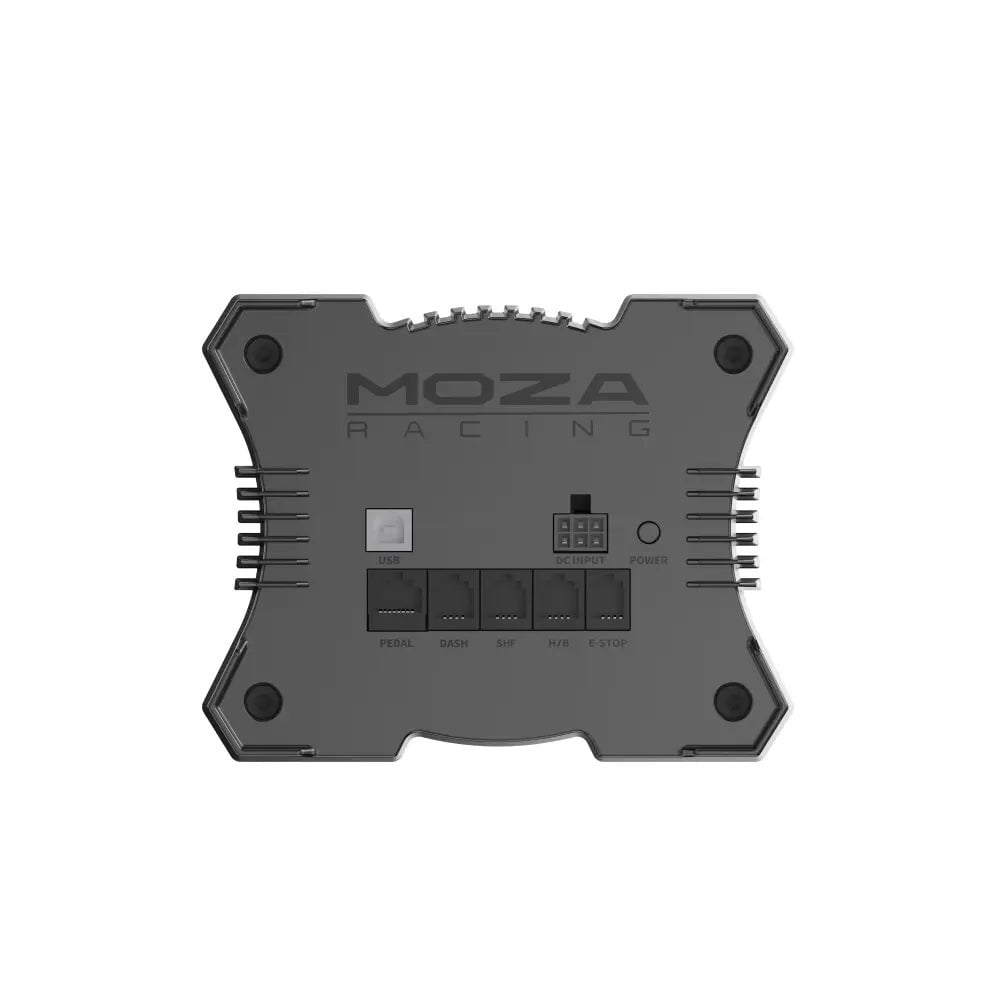

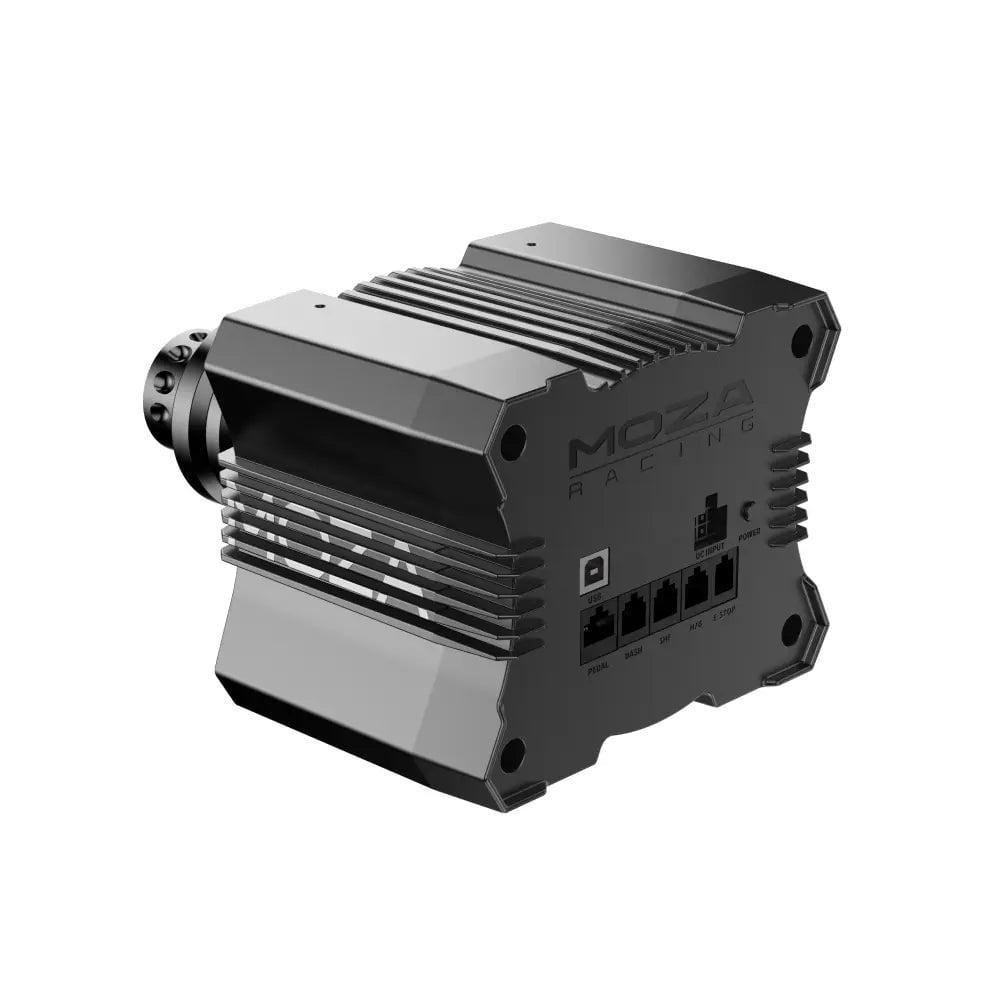

The R9 V3 is Moza's 9 Nm direct drive base for PC, sold bare so you choose the wheel and pedals. Its aluminum housing, 21-bit magnetic encoder, and up to 2,700 degrees of rotation give smooth, precise steering with enough strength to feel a car's weight shift through corners and over curbs. Moza wheels fit its quick release, and it has ports for pedals, a shifter, a handbrake, a dash, and an emergency stop. It bolts down through four holes underneath, and a Moza Table Clamp is sold separately for desks.

R9 V3 vs. R5 Pro

The R5 Pro is the step down, a complete set with a 6 Nm base, a wheel, two pedals, and a clamp. It is weaker but ready to race in one box.

R9 V3 vs. Fanatec CSL DD

Fanatec's 8 Nm CSL DD is the main rival, with FullForce, Xbox support with an Xbox-licensed wheel, and Fanatec's broad range on the QR2 quick release. The R9 has a little more torque.

R9 V3 vs. R12 V2

Moza's R12 V2 is the step up, at 12 Nm with the same quick release and accessories, so everything carries across. It is designed to bolt into a rig.

Specifications

Peak Torque9 Nm
Drive TypeDirect drive
Force Feedback TechnologyStandard
Quick ReleaseMoza QR
Pedal PortRJ12
Accessory PortNot stated
MountingBoth
Maximum Rotation2,700°
Desk Mounting HardwareNot included
Fanatec Console LicenseNot stated
Platform Compatibility
PC: Supported
PlayStation: Not supported
Xbox: Not supported

Platform support can depend on what this is connected to. Add it to a build to check your setup.

Works With

Steering Wheels 72 fit
Show all 72 compatible steering wheelsShow fewer steering wheels
27 checked and do not fit
Pedals 13 fit
  • ClubSport Pedals V3
    ClubSport Pedals V3 Direct fitConnects through the base pedal port, so the pedals work wherever the base does, including on console. Also connects by USB: Plugs into the PC with its own USB cable, so this only works on PC.
  • RS Pedals
    RS Pedals Direct fitPlugs into the PC with its own USB cable, so this only works on PC.
  • PRO Racing Pedals
    PRO Racing Pedals Direct fitPlugs into the PC with its own USB cable, so this only works on PC.
Show all 13 compatible pedalsShow fewer pedals
  • Podium Pedals Sport
    Podium Pedals Sport Direct fitConnects through the base pedal port, so the pedals work wherever the base does, including on console. Also connects by USB: Plugs into the PC with its own USB cable, so this only works on PC.
  • Raceline Pedals III LC
    Raceline Pedals III LC Direct fitPlugs into the PC with its own USB cable, so this only works on PC.
  • CRP2 Load Cell Pedals (Throttle+Brake)
    CRP2 Load Cell Pedals (Throttle+Brake) Direct fitPlugs into the PC with its own USB cable, so this only works on PC.
  • CSL Elite Pedals V2
    CSL Elite Pedals V2 Direct fitConnects through the base pedal port, so the pedals work wherever the base does, including on console. Also connects by USB: Plugs into the PC with its own USB cable, so this only works on PC.
  • CSL Pedals
    CSL Pedals Direct fitConnects through the base pedal port, so the pedals work wherever the base does, including on console.
  • CSL Pedals LC
    CSL Pedals LC Direct fitConnects through the base pedal port, so the pedals work wherever the base does, including on console. Also connects by USB: Plugs into the PC with its own USB cable, so this only works on PC.
  • ClubSport Pedals V3 Inverted
    ClubSport Pedals V3 Inverted Direct fitConnects through the base pedal port, so the pedals work wherever the base does, including on console. Also connects by USB: Plugs into the PC with its own USB cable, so this only works on PC.
  • Podium Pedals Formula
    Podium Pedals Formula Direct fitConnects through the base pedal port, so the pedals work wherever the base does, including on console. Also connects by USB: Plugs into the PC with its own USB cable, so this only works on PC.
  • SRP2 Pedals
    SRP2 Pedals Direct fitPlugs into the PC with its own USB cable, so this only works on PC.
  • mBooster Active Pedal Set (with CRP2 Throttle)
    mBooster Active Pedal Set (with CRP2 Throttle) Direct fitPlugs into the PC with its own USB cable, so this only works on PC.
6 checked and do not fit
  • 2 PEDAL SET-T150/T80/SPIDER
    2 Pedal Set-T150/T80/Spider Does not fitThese pedals plug into a wheel base, and this base doesn't have the right port.
  • 2-PEDAL PEDAL SET - T300RS
    2-Pedal Pedal Set - T300RS Does not fitThese pedals plug into a wheel base, and this base doesn't have the right port.
  • RACELINE PEDALS III
    RACELINE PEDALS III Does not fitThese pedals plug into a wheel base, and this base doesn't have the right port.
  • Raceline Pedals LTE
    Raceline Pedals LTE Does not fitThese pedals plug into a wheel base, and this base doesn't have the right port.
  • T2PM
    T2PM Does not fitThese pedals plug into a wheel base, and this base doesn't have the right port.
  • Thrustmaster T3PM pedals
    T3PM Does not fitThese pedals plug into a wheel base, and this base doesn't have the right port.
Shifters 7 fit
  • ClubSport Shifter SQ V1.5
    ClubSport Shifter SQ V1.5 Direct fitPlugs into the PC with its own USB cable, so this only works on PC.
  • RS Shifter & Handbrake
    RS Shifter & Handbrake Direct fitPlugs into the PC with its own USB cable, so this only works on PC.
  • HGP Shifter
    HGP Shifter Direct fitPlugs into the PC with its own USB cable, so this only works on PC.
Show all 7 compatible shiftersShow fewer shifters
Handbrakes 3 fit
  • ClubSport Handbrake V2
    ClubSport Handbrake V2 Direct fitPlugs into the PC with its own USB cable, so this only works on PC.
  • HBP Handbrake
    HBP Handbrake Direct fitPlugs into the PC with its own USB cable, so this only works on PC.
  • TSS Handbrake
    TSS Handbrake Direct fitPlugs into the PC with its own USB cable, so this only works on PC.
Cockpits 55 fit
  • GTRacer 2.0
    GTRacer 2.0 Direct fitThrough the GTRacer 2.0 Frame in the bundle. Bolts to the cockpit wheel deck. Check the deck hole pattern matches the base.
  • CSL Cockpit V1.5
    CSL Cockpit V1.5 Direct fitBolts to the cockpit wheel deck. Check the deck hole pattern matches the base.
  • CSL Cockpit V1.5 + Seat Bundle
    CSL Cockpit V1.5 + Seat Bundle Direct fitThrough the CSL Cockpit V1.5 in the bundle. Bolts to the cockpit wheel deck. Check the deck hole pattern matches the base.
Show all 55 compatible cockpitsShow fewer cockpits
Wheel Stands 4 fit
Show all 4 compatible wheel standsShow fewer wheel stands
  • Wheel Stand 2.0
    Wheel Stand 2.0 Direct fitBolts to the stand wheel plate. Check the plate hole pattern matches the base.
Desk Mounts 2 fit
  • MOZA Clamp for Truck Wheel
    Clamp for Truck Wheel Direct fitFits MOZA bases from the R3 through the R25 Ultra. Fits desks 3-70 mm thick; check desk strength and edge clearance.
  • MOZA Table Clamp
    Table Clamp Direct fitThe MOZA Table Clamp fits this base. Check desk thickness (maximum 50 mm) and edge clearance.
Show other desk mountsShow fewer desk mounts
1 checked and does not fit, 3 not verified
Cockpit Accessories 3 fit
Show other cockpit accessoriesShow fewer cockpit accessories
3 not verified
Adapters 2 fit
Show other adaptersShow fewer adapters
6 checked and do not fit

“Not verified” means we haven’t confirmed that combination yet.
