Fellow motion simulator guys. Check this out

Discussion in 'Sim Racing Hardware' started by Mayaman, Sep 9, 2012.

  1. quakefiend420

    quakefiend420

    Messages:
    28
    That looks pretty awesome for such a small package.

  2. left888

    left888 Premium

    Messages:
    1,815
    Location:
    Canada
    This chair looks kind of cool but to me it says office chair and the price is out of hand.It looks like one of those massage chairs that was left on high current for to long. I too like Pat Dodson's seat, I can fit it to my custom Zalem rig very easy. We are starting to see more and more new and cool designs in motion Sims, lets see what the next 5-10 years bring out. :)

  3. readyfe

    readyfe

    Messages:
    298
    Location:
    Australia
    Spot on... One thing is for sure, I keep going back to watch these guys youtube videos.. Their set up plus motion would be out of this world:

    http://www.simpit.co.nz/centurion.html

  4. Mayaman

    Mayaman Premium

    Messages:
    2,224
    ^^^
    Ahem, hopefully you'll be seeing that a lot sooner than later.... ;)

  5. Caz

    Caz

    Messages:
    2,239
    I see what you done did right there!

  6. NeoAgent

    NeoAgent

    Messages:
    243
    Location:
    United States
    Mayaman, still looking forward to your .02.

  7. Mayaman

    Mayaman Premium

    Messages:
    2,224
    Yeah, I've put in 80 hours already this week and today I'll be here till 11pm or later. Working on a Win7 migration for the entire company.

    Hopefully I'll be done by mid next week, but I have written a few paragraphs from what I've wanted to get across. I tried really hard the last few days when driving to work to jot down my experience and then convey that to the motion sim. Hopefully it'll be a fun read.

    And I agree about the "office" look of the chair but I think that is because of the base. They sell another without that base made to mount on driving rigs. But you're all right, it doesn't scream "Racing". And also the backrest is the only thing that moves but I don't think that is such a bad thing. At least not at first glance.

  8. alucard83

    alucard83

    Messages:
    35
    We're all looking forward to you're two cents, just don't kill yourself trying to get it to us faster:)
    The Dbox setup looks really nice but i don't think it's ever going to be in my price range. So first things first, time to go triple screen.

  9. NeoAgent

    NeoAgent

    Messages:
    243
    Location:
    United States
    Agree with alucard83, no need to rush.

  10. Mayaman

    Mayaman Premium

    Messages:
    2,224
    Alucard, triples and tactile IMO is the best and cheapest things you can do. Motion is the cherry on top. But if you can get triple projectors *which by the way isn't as expensive or hard as everybody makes it* and put some tactile all over your rig then you're going to have something awesome.

  11. alucard83

    alucard83

    Messages:
    35
    I agree that triple projectors would be the best, having 3 seemless screens would be awesome. But it's stil a lot more expensive then going triple monitor. It ofcourse helps if you're tripling you current monitor which i wil be doing.
    Two more dell u2412m monitors will cost me around 500 euro's.
    The cheapest full hd beamer i could find would cost me 700 euro's each. Then i'd need three screens and something to put the beamers on. All in all quite a bit of disposable income needed for that option. Maybe 720p beamers would cut the costs in halve but i don't know if you would notice the loss of vertical pixels as much as with a monitor. Maybe this is not an issue if you adjust the fov properly?
    I'll have to look into the tactile options, would be awesome to feel the engine and rumble strips through the frame.

  12. Mayaman

    Mayaman Premium

    Messages:
    2,224
    Yeah do what you can buddy, its all about finding what works for you. You're definitely on the right track!

    For the record if you follow my thread and my videos you'll see that the video quality from 3 pico beemers is pretty nice.

  13. juls

    juls

    Messages:
    7
    Hello, I am Julien Regnard from Geko Systems.

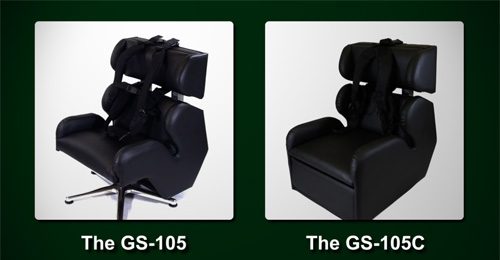

    We produce the compact motion simulator GS-105. The seat is now available in two versions.
    One with an office chair foot (possibility to change height) the other to integrate in an existing setup.

    [​IMG]
    I will try to explain how it works and answer your questions.
    I hope this is OK with the forum rules.


    1) GS-105 how it works

    Traditional motion simulators like motion platforms or frex-like move your body or change
    your posture moving the backrest.
    This is an indirect way to make you feel forces: it moves you and as a result you feel forces.

    The GS-105 is a G-Seat or dynamic seat. Basically this is a force feedback seat.
    Instead of moving you and expect you to feel the right forces, it directly applies the forces
    where it gives the most convincing effect for your body.
    The bottom of the seat does not move and plays the role of your car seat. The upper backrest
    and the harness push your torso and play the role of the G-forces.

    G-Seats have many advantages compared to traditional simulators:
    * very reactive: takes only a fraction of a second to apply a force, while other simulators have
    to move your body until it reaches the right position.
    * sustained force, no parasitic force: G-Seats push the right amount and can push forever
    without unwanted forces. Other simulators move and have to stop moving sooner or later
    as their actuators reach their maximum extent. In a long corner like Monza last corner, a
    GSeat will give you the exact centrifugal force and all it's variations, while a traditional motion
    simulator will move then stop causing unwanted variations in forces you feel.

    2) the innovation.
    The innovation is that the GS-105 upper backrest applies STRONG forces to your torso on
    a large range (8" lateral, 8" longitudinal). Up to 40 lbs.
    As a result, like in real life, you have to resist against the forces in order to keep steady.
    For example when breaking, the upper backrest will push your torso forward, and you have
    to contract muscles in your back, arms, legs to keep steady, exactly like you would do in real life.

    It gives a very powerful immersion, with a full body response. You are no more passive like in
    other motion simulators and G-Seats. Like in a real vehicle, there is a tight feedback between
    you and the vehicle. You know what level of force to expect for a given steering or braking input and
    immediately detect when something is wrong. This is a very different experience from other simulators.

    The GS-105 with iRacing:

    At 0:32 you can see how the GS-105 gives you a very sharp sensation when the car starts sliding.
    At 2:22 during heavy braking you can see how the GS-105 makes you feel what the rear of the car
    is doing and intuitively keep control.​

    Here you can find an article which explains all this with more details and pictures.:
    http://www.gekosystems.com/en/gs-105-motion-simulator/learn-more.html

    Last edited: Oct 2, 2012
  14. Cheeba

    Cheeba Premium

    Messages:
    118
    Location:
    United States
    Really interested in this as I've been looking at the GS4 seat. The look is throwing me off though. It looks like what it would be if I were to bolt my theatre chair up to my sim rig. It does not look bad, just...strange maybe. I'd really like to see this 105C connected to a rig. In the youtube video it seems like the chair is just sitting on the ground? With the GS4 I know I just connect to seat rails and go.

    I do like how compared to the GS4 the components seem more enclosed and the sound of the chair operating seems to be minimal compared to other solutions (important when lapping at 3:00am and baby is close!!).

  15. Mayaman

    Mayaman Premium

    Messages:
    2,224
    Thanks for the information juls.

  16. juls

    juls

    Messages:
    7
    In the videos we used the foot version, on the ground. In low position the sitting height for this version is 14.5" (37cms) this is very close from sitting height in most cars.

    The sitting height of the cockpit version is 12"(30cms). It looks high on the pictures, but it is quite low. It is similar to the height of a racing seat on it's support. You can still add seat rails before it reaches the sitting height in a car.

    The GS-105 is made of wood, it is easy to attach with wood screws.
    A customer attached directly the GS-105C on seat rails with wood screws, and the seat rails on the bottom board of his cockpit. Another one attached the GS on a cockpit made of aluminium profiles. You can bolt it through the sides too.

    It makes less noise than most racing controllers. Here is a video with raw audio to hear the noise level:

  17. Cheeba

    Cheeba Premium

    Messages:
    118
    Location:
    United States
    Ahh thanks for explaining that. Ok, so you can attach the seat rails to the bottom of the GS-105C to mount to your cockpit with wood screws. Sounds simple enough. Would still like to see it mounted to a cockpit but I see how it could work now.

    The compact design is really nice since I have a small footprint to work with. Maybe the chair design will grow on me :).

    Going to your website for more info, this looks like a good possibility... :cool:

    update: Informative website (more so than the GS4 seat site for sure). Couple questions, where do the usb and power cord connect? What is it that looks like some sort of aluminum panel on the back of the seat (shown on website pics)? Can you operate it without the harness? Lastly, does it work with Game Stock Car 2012 and F1 2012 Codemasters?

    Thanks for the thread Maya :tup:

    Last edited: Oct 3, 2012
  18. Mayaman

    Mayaman Premium

    Messages:
    2,224
    More videos would be appreciated as well from different angles. :)

    No problem Cheb, I'm always on the lookout to for more things to spend money on lol.

  19. Caz

    Caz

    Messages:
    2,239
    Need a 33 year old son?

  20. Mayaman

    Mayaman Premium

    Messages:
    2,224
    Sorry I only spend money on "fun" stuff. Hehe

  21. Caz

    Caz

    Messages:
    2,239
    But, but, but.....daddy?

    No more off topic for me. Sorry.

    This seat as i stated before looks great but i wouldnt replace my static full bucket kirkey seat for it.
    Now if there was a kit of some sorts where i could cut my race seat in half and add the motion aspects to the upper section of it then we are talking.

  22. NeoAgent

    NeoAgent

    Messages:
    243
    Location:
    United States
    Mayaman, still awaiting your thoughts on motion rigs, etc when you get a chance.

  23. Mayaman

    Mayaman Premium

    Messages:
    2,224
    Yeah haven't forgotten, my posting tIme until this win7 project is done is basically limited to a couple minutes a day. :(

  24. juls

    juls

    Messages:
    7
    The aluminium panel at the bottom left receives the USB and the power supply plugs.

    Operating without the harness is not possible, unless you set a very very low level of forces. The tightened harness keeps the connection between your torso and the upper backrest, and allows to have a strong, life-like level of forces. It also surrounds you and helps feeling the G-forces apply to your entire torso instead of feeling the forces on your back only.

    For the games we will check to be sure, but:
    F1 2012 should work like F1 2010-11 assuming they did not change their way of sending telemetry.
    Game Stock Car 2012 uses rFactor engine, so it should work directly with the plugin supplied for rfactor.

    We used the top down view in videos as it is the best to show torso movements in all horizontal directions, but it is possible to show other angles. We will upload more videos soon.

  25. Mayaman

    Mayaman Premium

    Messages:
    2,224
    Awesome thanks. Its always good to show different views as you'll have skeptics who will hold that against you.

  26. museumsteve

    museumsteve

    Messages:
    681
    Location:
    United Kingdom
    Looks nice, love the small footprint more than anything :)

  27. Mayaman

    Mayaman Premium

    Messages:
    2,224
    Gecko any updates?

  28. Mr Latte

    Mr Latte Premium

    Messages:
    4,815
    Location:
    United Kingdom
    I'd love to see a design of this that enables a user to add a typical racing seat just not keen on the office chair look or something resembling a la-Z-boy, no sir.

  29. juls

    juls

    Messages:
    7
    Yes sorry, several users (mostly from France) have posted reviews, pictures and videos since last time.





    Here a customer (he made the second video, dark with triple projectors above) made a detailed review in english on iracing forum.
    http://members.iracing.com/jforum/posts/list/2146885.page

    I copy it below:


  30. juls

    juls

    Messages:
    7
    Here another review posted on iracing website, very enthousiast. This user has spent lot of time investigating about different solutions for motion simulation as he wanted to build his own simulator. He made several seasons of karting, and tried 6-axis heavy platforms from i-way (http://www.lepoint.fr/content/system/media/1/200804/6605_Une-Iway.jpg)
    When he heard about the GS-105, he made some prototype using servo motors to feel by himself the concept before ordering.
