Project Simulation | DIY Cockpits Plans | GT and F1 Style

Discussion in 'Sim Racing Hardware' started by Masi_23, Jul 1, 2013.

Thread Status:
Not open for further replies.
  1. Masi_23

    Masi_23

    Messages:
    4,729
    Location:
    United States
    >>> www.ProjectSimulation.webs.com <<<

    [​IMG][​IMG]

    Hello there! I'm here to introduce my new concept, Project-Simulation.

    My main goal is to provide the budget minded (or stricken) racing enthusiast with the proper way to race without
    breaking the bank in the form of DIY Blueprints. Designed will be two unique cockpits; GT1 (Touring Cars) and F1
    (Open Wheel). GT1 is now available (www.ProjectSimulation.webs.com) while F1 is currently in the drawing board.

    Only DIY Blueprints are available. Pre-assembled kits will not be sold for the foreseeable future, at-least in 2013.

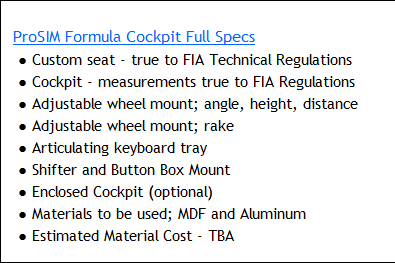

    Full cockpit specifications are listed below. A wheel mod service is also in the works; more info TBA.

    [​IMG][​IMG]
    [​IMG][​IMG][​IMG]
    [​IMG][​IMG]
    [​IMG][​IMG]
    [​IMG][​IMG]
    [​IMG][​IMG]


    Testing the GT1 Cockpit with T500 and DSD Bent Rod Shifter



    [​IMG][​IMG]

    ::: All Rights Reserved | ProSim Inc. | 2013 :::

    Last edited: Mar 25, 2014
  2. Masi_23

    Masi_23

    Messages:
    4,729
    Location:
    United States
    Gallery | July 4, 2013

    ProSIM F1 Cockpit
    • Drawing Board | Current Renderings:
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]


    ProSIM GT1 Cockpit

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Articulating keyboard holder.

    [​IMG]
    [​IMG]
    [​IMG]


    [​IMG][​IMG]

    ::: All Rights Reserved | ProSim Inc. | 2013 :::

    Last edited: Jul 29, 2013
  3. Gedi69

    Gedi69 Premium

    Messages:
    11,845
    Location:
    England
    I'm very intrigued about this as I'm thinking about making 1 for my loft,as I've just been given an old recaro bucket seat.

  4. Masi_23

    Masi_23

    Messages:
    4,729
    Location:
    United States
    Will be taking better pictures of GT1 in a few hours (just finishing installing some more CF Vinyl).
    Maybe it should help you decide. :tup:

  5. Gedi69

    Gedi69 Premium

    Messages:
    11,845
    Location:
    England
    What was the time frame in making it, I've only got a DFGT at the mo but I'm sure it wouldn't differ much would it?

  6. Masi_23

    Masi_23

    Messages:
    4,729
    Location:
    United States
    The trial and error from measuring took a lot of time. But that's all done by yours truly.

    It should take no more than a couple of days to build (without paint, CF, etc.) with proper tools. I think I can build one in a day since I know all the procedures in my head.

  7. Gedi69

    Gedi69 Premium

    Messages:
    11,845
    Location:
    England
    Cool looking forward to seeing it and the blueprints :tup:

  8. lemansfanatic

    lemansfanatic

    Messages:
    1,326
    Location:
    United States
    Good, always looking for ways to do a proper F1 cockpit, and it would be nice to have an estimated budget for the build. Would be nice if you could include links to other diy projects required to complete the cockpit like diy F1 seats.

  9. Masi_23

    Masi_23

    Messages:
    4,729
    Location:
    United States
    The F1 rig will strictly be made from MDF and Aluminum profiling (for bracing purposes). Cost would most likely be double that of the GT rig, if not, more.

    I'm designing the seat out of the same materials as above - basically making a frame of the F1 seat. Padding should not be much of an obstacle. Of-course, if you already have a seat you can use that, but then it's up to you to incorporate that aspect with the rig design at hand. The FIA technical regulation rulebook gives out the exact measurements of the cockpit and I will follow those as best I could.

    But that's tomorrow. The main focus for the time being is GT.



    Last edited: Jul 11, 2013
  10. lemansfanatic

    lemansfanatic

    Messages:
    1,326
    Location:
    United States
    I like what I'm hearing so far. The main thing I am wanting to achieve is a realistic finish for the top of the nose (ultra high gloss material) without sanding 100,000 times and putting 100 coats of high gloss paint. I am looking into either colored nylon adhesive or simply finding a piece of plastic like a garbage can and cutting it in half to drape over the wheel and pedal structure...

    Last edited: Jul 1, 2013
  11. Masi_23

    Masi_23

    Messages:
    4,729
    Location:
    United States
    You're referring to an enclosed cockpit, correct? What I have in mind is an open-air skeleton, much like the Playseat F1 and RSeat Formula. Main goal is to replicate the sitting position in the most affordable, realistic, and ergonomically efficient way (getting in and out easily). Although I would think an enclosed cockpit assembly is what everyone would want, so I will keep it in mind in my sketches. Already brainstorming now.

  12. lemansfanatic

    lemansfanatic

    Messages:
    1,326
    Location:
    United States
    Yes, I am thinking of how to turn an open air skeleton into a closed cockpit with a simple wrap that would drape over the frame and give the driver a realistic nose to look down over. This one is too expensive, but it has the right profile. http://www.mscdirect.com/product/06617955?src=pla&008=-99&007=Search&pcrid=25122938224&006=25122938224&005=53306208904&004=7506857224&002=2167139&mkwid=s02bGWqKB&cid=PLA-Google-PLA+-+Test_s02bGWqKB_PLA__25122938224_c_S&026=nv&025=c

    If you just imagine simply cutting this in half from top to bottom, and turning it on its side for using it as a lightweight no hassle nosepiece that could be painted with minimal prep vs sanding and painting MDF. Just a thought, don't mean to derail your thread, and I look forward to seeing your ideas for the framing.

  13. Masi_23

    Masi_23

    Messages:
    4,729
    Location:
    United States
    Yeah, I've thought about doing an enclosed cockpit, but I thought it would just add to the cost. I'll definitely design it in a way where you can wrap and enclosed the assembly later on when you've adjusted everything to your likeness (fit).

  14. Gedi69

    Gedi69 Premium

    Messages:
    11,845
    Location:
    England
    Any pics yet Masi?

  15. Masi_23

    Masi_23

    Messages:
    4,729
    Location:
    United States
    Yes, although I didn't get to work on it today, but here are the latest pics from two days ago.

    Apologies for the amateurism. Did not have a proper camera in hand.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]


    Note that the table top behind the wheel is designed for a Desktop Tower to rest on. You can also put a monitor or a console on
    there of course, or anything you like really. I'm still building an adjustable single/triple monitor stand which I'll reveal on a later time.
    Lastly, the wheel mount assembly will be lowered by about one inch more.


    Wheel mount adjustability
    • Angle: 0 degrees (wheel is perpendicular to ground) up to around 35 degrees
    • Height: Adjustable up to 3 inches
    • Distance: Up to 6 inches forward and back

    Last edited: Jul 1, 2013
  16. Gedi69

    Gedi69 Premium

    Messages:
    11,845
    Location:
    England
    Looks awesome :tup: what tubing did you use? And how do the pedals work as I've noticed there upside down so surely the gas pedal is on the left and not the right.

  17. Masi_23

    Masi_23

    Messages:
    4,729
    Location:
    United States
    It is PVC. I'm not too sure if it's available in the UK, but there are a couple of vendors online that sell them internationally. I switched the pedal faces so the gas is still on the right. The T500 Gas and Clutch pedals have pretty much the same resistance, so it's no problem. You can also mount them in the standard way. I will take more pictures showing all the adjustable options you will have once I finish the rig.

    Please note that the wheel and pedal mounts were designed to fit Logitech, Thrustmaster, and Fanatec wheel and pedal sets.

  18. Gedi69

    Gedi69 Premium

    Messages:
    11,845
    Location:
    England
    Thanks Masi :)
    I've got a DFGT at the mo like I said so I guess mine should fit ok, as for the pipes I guess I can go to a plumbers merchant and get waste pipe and elbow's from there.

  19. Masi_23

    Masi_23

    Messages:
    4,729
    Location:
    United States
    Yep, it should be fine. Although I think the pedals don't have mounting holes like the G25/G27. You may have to drill on it. If not, some really sticky velcro would do fine.

  20. Masi_23

    Masi_23

    Messages:
    4,729
    Location:
    United States
    Here's a quick video of the rig :D Excuse the driving. It's the first
    time i've touched iRacing in 6 months. Playing around with GoPro.




    And a few more pictures.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]


    Articulating keyboard holder.

    [​IMG]
    [​IMG]
    [​IMG]

  21. Gedi69

    Gedi69 Premium

    Messages:
    11,845
    Location:
    England
    Cool vid & pics Masi :tup: when will you get the blue-prints up?

  22. Dean

    Dean Premium

    Messages:
    6,255
    Location:
    Denmark
    Your rigs look really nice :tup:. Since you're in Copenhagen (;)) can I please request a price-list, preferably in Danish kroner :D?

    Last edited: Jul 3, 2013
  23. Masi_23

    Masi_23

    Messages:
    4,729
    Location:
    United States
    @ Gedi - had problems with complicated 3D software - just switched to sketchup. Targetting to finish by this weekend. Although it is July 4th weekend here :cheers: so I cannot promise with confidence.

    @ Dean - I am actually based in LA now :D Not really sure how much the materials will cost there, but if you convert $120, maybe around 700 krone?

  24. Gedi69

    Gedi69 Premium

    Messages:
    11,845
    Location:
    England
    No rush mate :) as I'm gonna get the materials as and when I can, will you post a material list too

  25. Dean

    Dean Premium

    Messages:
    6,255
    Location:
    Denmark
    Oh, okay :D!

    $120 USD (~700 DKK, yes) is very cheap, in my opinion, if parts can be bought here. but if shipping, from the US, comes in, the price'll for sure "go nuts" :lol:!

    Thanks anyway :D:tup:!

  26. Masi_23

    Masi_23

    Messages:
    4,729
    Location:
    United States
    @ Gedi - i'll send you a PM about parts list.

    @ Dean_J - I'm sure there's PVC vendors there, though not sure about pricing. There are a couple of online vendors I know but shipping would probably be too much :D

    Last edited: Jul 3, 2013
  27. Masi_23

    Masi_23

    Messages:
    4,729
    Location:
    United States
    Please delete - Double post.

    Last edited: Jul 3, 2013
  28. Gedi69

    Gedi69 Premium

    Messages:
    11,845
    Location:
    England
    Hey I'm sure waste pipe from a plumbers merchant would be the same and as strong, and thanks again for your help :tup: I'm looking forward to making it.

  29. Coxis

    Coxis

    Messages:
    3,446
    Location:
    Mexico
    Great work, Masi! PVC is surely the material to go to for the poor man's cockpit. There's one thing that caught my eye in particular, though... and it is that cool cupholder that appears in one of your pictures. Can you take more pictures of that? I've never found a suitable cupholder that could be mounted to a 2" PVC pipe. I've been meaning to install one on mine for so long, but no luck.

  30. Masi_23

    Masi_23

    Messages:
    4,729
    Location:
    United States
    Thanks man!

    I got them for cheap on eBay. I'm not home at the moment, but here's a LINK.
    It's foldable and there are 6 mounting holes on the back. :cheers:
