Question about Fanatec CSL DD mounting hardware

[Ascendancy]

So I just bought the CSL DD ready2Race bundle does it come with all the hardware needed to mount the wheelbase and pedals to a cockpit? Because my G923 did not.



[Abarth_71]

No, they don't supply mounting bolts.



[Ascendancy]

Thanks for letting me know. So what do I need to buy to mount the wheel and pedals?



[Abarth_71]

For the wheelbase they're M6, you need 10mm + the thickness of the mounting plate. Assuming most mounting plates are 3mm use washers and 15mm are ok. If you use all the t-nuts you'll need 4 of them. The pedals are M8 (I used 20mm) for the rear holes + washers and lock nuts (one bolt per pedal). For the front mounts under the pedal plate you need two M6, 22mm + thickness of the mounting plate, think I used 25mm ones with washers.

You can download the manuals and they have the mounting instructions.



[Ascendancy]

Thank you so much! I'll be mounting it to a GT Omega ART cockpit.



[Abarth_71]

Thank you so much! I'll be mounting it to a GT Omega ART cockpit.

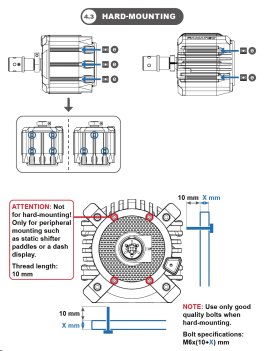

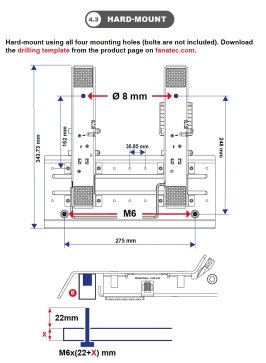

To save you downloading the manuals.



[Ascendancy]

To save you downloading the manuals.

Awesome thanks again! you have been most helpful.



[king_cole123]

For the wheelbase they're M6, you need 10mm + the thickness of the mounting plate. Assuming most mounting plates are 3mm use washers and 15mm are ok. If you use all the t-nuts you'll need 4 of them. The pedals are M8 (I used 20mm) for the rear holes + washers and lock nuts (one bolt per pedal). For the front mounts under the pedal plate you need two M6, 22mm + thickness of the mounting plate, think I used 25mm ones with washers.

You can download the manuals and they have the mounting instructions.

This is the one place I was able to find useful and instructive advice thanks
