Eddy's PVC Rig from start to finish - (Inspired by SIMUL8R) - Now with Insturctions!

Discussion in 'Sim Racing Hardware' started by SlowEddy, Dec 5, 2010.

  1. SlowEddy

    SlowEddy

    Messages:
    20
    ***Edit click here if my pictures don't show up ====> http://s12.photobucket.com/albums/a206/edguna1/GT5%20Project/?start=0


    So here is the start to finish build of my PVC Rig - see post number 2 for drawings and DIY instructions - I will be updating it over time since I'm not 100% finished with the drawings

    I was originally going to build something out of extruded aluminum / 8020 stuff but stumbled upon SIMUL8R's PVC gaming race pod which can be found here.
    http://lumenlab.com/forums/index.php?showtopic=28016&st=0

    so I went the PVC route and made a few design changes of my own. It took me roughly 2 months to finish from start to finish - i took my time since GT5 was delayed

    I am still planning to add a butt kicker and the Fanatec club sport shifter whenever that comes out

    Started off creating a 3D model using SIMUL8R's original design
    [​IMG]

    Finished and photo rendered
    [​IMG]

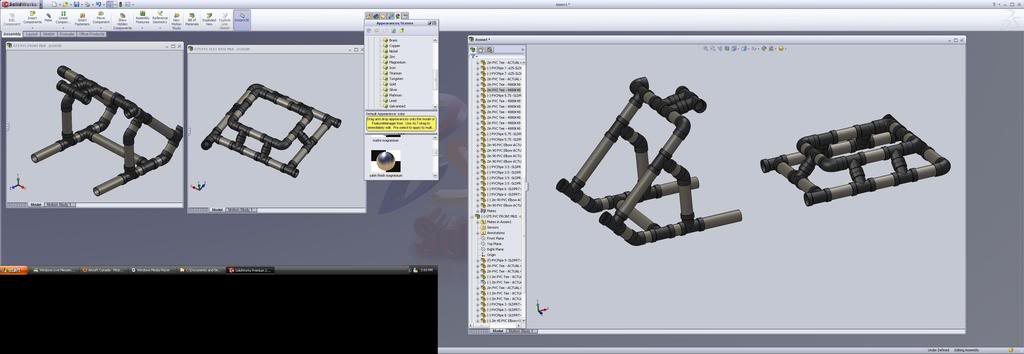

    I wanted to make it more portable and easier to move around the house so created front and rear sections of the frame
    Front
    [​IMG]
    Front + Rear

    Full assembly
    [​IMG]

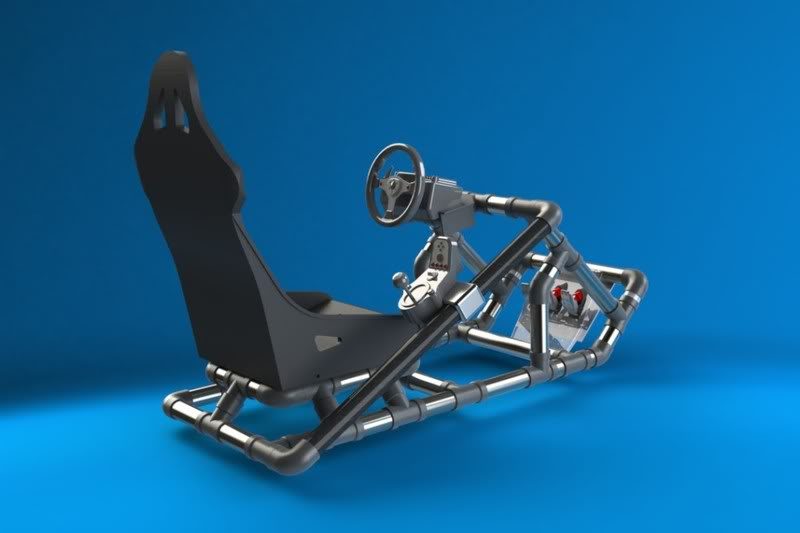

    Photo render 1
    [​IMG]

    Photo render 2
    [​IMG]

    I started fabricating components using a hack saw, miter box, and Dremmel
    [​IMG]

    Front Assembly built to Spec
    [​IMG]
    [​IMG]

    Progress!!!
    [​IMG]

    Progress on the Rear assembly
    [​IMG]

    Front and Rear assemblies
    [​IMG]

    With seat and wheel mount
    [​IMG]

    I realized the seat was too high with the my initial design so i had to change it

    making use of old text books to figure out a a better seat height
    [​IMG]

    I also Decided to wrap everything in 3M-Di-Noc carbon fiber film. Its pretty expensive but pretty nice stuff
    Real CF on the left and right, 3M stuff in the middle
    [​IMG]

    Wheel mount - made out of MDF - used the factory template for mounting wholes
    [​IMG]
    [​IMG]

    Wrapped in 3M Carbon fiber
    [​IMG]

    With my wheel mounted
    [​IMG]
    [​IMG]

    The entire frame wrapped with 3M Carbon fiber
    [​IMG]

    Pedal mounts made from 3/8" thick scarp press wood I found
    [​IMG]

    Finished
    [​IMG]

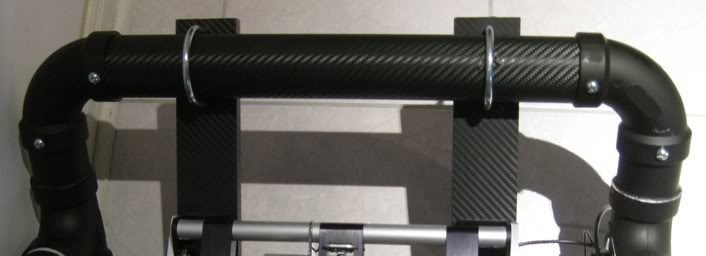

    Mounted to the front assembly using 2X U-bolts
    [​IMG]

    Wheels & Pedals
    [​IMG]

    Seat mount - also made from scrap 3/8" press wood
    [​IMG]

    bolted onto the rear assembly
    [​IMG]

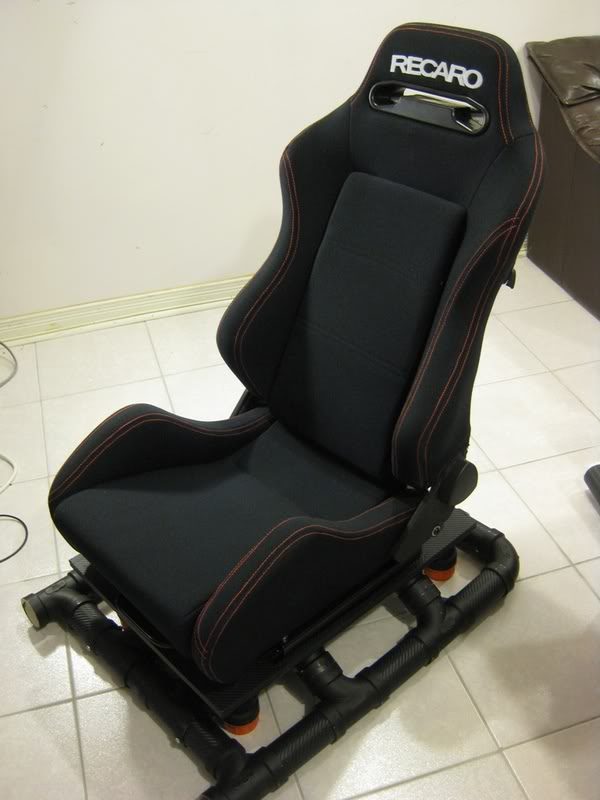

    Seat mounted
    [​IMG]

    there's plenty of room in the back for a butt-kicker
    [​IMG]

    This is why i hate gluing!!! - parts didn't fit - so the rear section is glued together and the majority of the front section is bolted with 1/4" bolts
    [​IMG]

    after having the re-cut / glue / paint and assembly its finialy Completed!
    [​IMG]

    [​IMG]

    Been playing quite some time with it on GT5 now - its great! :sly:

    thanks for looking!

    Last edited: Dec 31, 2010
    Dopplegagger, kikie, zr1chris and 4 others like this.
  2. SlowEddy

    SlowEddy

    Messages:
    20
    The DIY Drawings

    Follow the links below for full size drawings (the picture is huge and there's no auto re-size on this forum)


    First up is the Rear / seat assembly

    [​IMG]

    http://s12.photobucket.com/albums/a206/edguna1/GT5%20Project/?action=view&current=GT5PVCSEATBASEMkII-1.jpg


    Front Assembly -- *UPDATED*

    [​IMG]

    http://s12.photobucket.com/albums/a206/edguna1/GT5%20Project/?action=view&current=GT5PVCFRONTASSEMBLYMkII-1.jpg


    Steering Mount

    [​IMG]

    http://s12.photobucket.com/albums/a206/edguna1/GT5%20Project/?action=view&current=Steeringwheelmount.jpg

    Last edited: Jan 5, 2011
    Ryan Monaghan likes this.
  3. 08g8v8

    08g8v8

    Messages:
    26
    Great work. Looks awesome. Love the carbon fiber.

    Do you have a shifter mount?

  4. 12thgear

    12thgear Premium

    Messages:
    988
    Location:
    United States
    That's a stellar build diary. Very nice work. You've taken PVC to a new level with the carbon fiber-look wrap. I also really like how the wheel deck came out.

  5. Andretti

    Andretti

    Messages:
    75
    Ignore the pm eddy. At first glance I think you covered my questions!

    Very cool!


    Andretti

  6. SlowEddy

    SlowEddy

    Messages:
    20
    no I didn't make one yet, I Probably wont make one until i get a shifter.
    but i can tell you know that the mount will probably consist of some MDF and a U-bolt strapped to the side of the rig

  7. Andretti

    Andretti

    Messages:
    75
    Well, I havent glued any of it yet, but it is assembled! I'm kinda worried about the gluing part since once its done, its done....I'm scared about gluing something crooked that will affect things fitting later on in the assembly. Still, a big HUGE thank you to SlowEddy as well as Simil8r. Thanks for posting these ideas and projects. It makes it incredibly easy thanks to sharing your plans and experiences when building these.

    I did change only one thing as a possible future mod that I dont know if I'll ever do or not. I wanted the possibility of being able to create an additional flat area behind where the wheel mounts so I could set a monitor or drink or whatever if I ever desired by adding a Y fitting on the riser in the front (and for now just capping it off).

    Posting pics here in a few.

    Andretti

  8. RobHimself

    RobHimself

    Messages:
    2
    SlowEddy,

    After reading through SIMUL8R's initial posting, I was really hoping you'd contribute a follow-up. I'm very thankful and pleased that you did. I do have a question, however, and it pertains specifically to the pedal mounting.

    I noticed that in your initial render, it appears that one of your modifications was to reverse mount the pedals. This was a modification to the design that I was intending on as well:

    But in subsequent renderings, I notice that you opted to stick with the initial pedal mount design:

    What made you reconsider your approach? Also, I know that SIMUL8R had a parts list, but I was hoping that you might be able to post a definitive list of the materials that you started with as a sort of shopping list.

    Thank you kindly in advance, and thank you again for sharing your awesome creation.

  9. greekbull

    greekbull

    Messages:
    507
    Location:
    United States
    That's a really sweet rig!!! Question: how much did all of the materials run you for the setup you have as is?

  10. MadVillan racer

    MadVillan racer

    Messages:
    1
    Hi I'm new and was just wondering is this sturdy? Like are you able to go full force on the wheel without it moving? It looks sick as hell. I wanna try and build. Really appreciate the plans. Thank you.

    Last edited by a moderator: Dec 7, 2010
  11. SlowEddy

    SlowEddy

    Messages:
    20
    Hey Rob, the only reason why I decided to do the standard pedal mount instead inverted was because I didn't want to take apart my brand new Club-sport pedals (they're really nice as it is) - but I still kept in mind for possible future modifications - I bolted the PVC pedal mounts to the frame so I can take it apart and invert the pedals in the future if i ever decide to.

    [​IMG]


    I also have a parts list - it's usable but contains a few extra parts that I never used (mostly fasteners). I will eventualy create a final one and post it here
    but if you really want the list i have now I can PM it to you


    - I spent about $170CND on PVC parts alone
    - About $30 on Fasteners (I didn't use all of them tho)
    - the MDF & press wood were scrap pieces (but should be pretty cheap stuff to buy)

    The Recaro seat and 3M carbon fiber = a lot :crazy: ... those 2 items add a lot to the grand total - which is more than having an Obutto shipped to my door


    yes it is very sturdy I have the force feed back on my Fanatec wheel set at 100% and I some times stomp on my break pedal and the frame is rock solid

  12. Andretti

    Andretti

    Messages:
    75
    I used ABS in my build of Eddy's/simil8rs design instead of pvc so I wouldnt have to paint it.

    My initial bill for two pieces of 10' black 2" pipe was $14. Add $83 for the fittings for all of the back of the similator where the seat is. Finally, I had to buy one more pipe ($7) and the rest of the fittings that made up the front of it. That totaled another $43.

    I'm the first to admit....I chose ABS for the fact its black...I wanted a black one and I wasnt in the mood to deal with painting it. Did this one simple fact make it more expensive than it needed to be? Definately. Do I care in the least? Not one iota.

    I still need to find and purchase a good seat and mount it as well as glue mine up (bolting a few areas for ease of disassembly and expandability) as well as get and cut up a board for the seat to set on as well as the wheel to attach to.

    But I cant highly recommend this enough. I freaking LOVE what I've got done so far and am really excited to finish it and then use the hell out of it.


    Any suggestions on where to find a great, fully adjustable seat as well as comfortable...and reasonably priced would greatly be appreciated. At this point, I'll likely get one from 'you wrench it' or something, but I'd really prefer to get a nice recaro or something ultimately.

    Andretti

  13. AlPh4Kil1

    AlPh4Kil1

    Messages:
    55
    i will admit this is probably the dumbest question ever submitted
    How do you attach the 3M Carbon Fibre? i'm new to all this 3M stuff

  14. aimre

    aimre

    Messages:
    19
    Hows the stability of the thing. I always thought PVC rigs were wobbly

  15. laxplyr

    laxplyr

    Messages:
    1
    Eddy.. wow great setup. I'm just planning my setup and was going to go with a metal frame, I mocked up a prototype from wood, and I was going to reproduce it in metal.. but since I saw yours, I'm rethinking.
    I have a question if you don't mind, how stable is the wheel, I mean when you're driving and putting pressure on the wheel while turing etc, does the pvc sway in either direction?
    Also where in Canada are you?

    Thanks
    Steve

  16. tek18b_jimmy

    tek18b_jimmy

    Messages:
    17
    here is a picture of mine. i modified yours a little bit, like adding an extra tee at the top and back sections, so i can build bars on either side, for the shifter (depending on what side the car drives on). i just have to glue the back half together, and i'm on the fence on gluing the front but dont want to spend $$ on fasteners...

    [​IMG]

    i got my seats from a group buy on Zilvia.net, but this is the company that sells them... (yes they sell generic bucket seats)

    http://www.sonicmotor.com/

    THANK YOU Very Very much SlowEddy and SIMUL8R for building, sharing ideas, and drawings!!!!

    SpaceBreed likes this.
  17. Andretti

    Andretti

    Messages:
    75
    Not glued, but assembled. Like I said...I added two y fittings in the front for the posibility of future expansion. If I never do, no loss, but if I decide to add, I wont have to pull anything apart or cut. I'll just take off the caps and start adding pipe and fittings.


    [​IMG]

    [​IMG]

    Hoping to get it glued up today...maybe get the board for the base for the seat done as well.


    Once again, thanks Eddy and sim!

    Andretti

    SpaceBreed likes this.
  18. Andretti

    Andretti

    Messages:
    75


    I cant respond to your question with 100% experience since mine isnt glued up yet, but it is pretty sturdy.

    Using 2" pipe should make it absolutely sturdy enough for any 'trama' during use...and again, mine isnt even glued up yet.


    Andretti

  19. simplygriff

    simplygriff

    Messages:
    35
    I gotta say, I considered building mine completely out of PVC and my design paled in comparison so I went with wood. This thing looks pretty dope. DL'd the instructions in case I decide to build this one day. :tup:
    -G

  20. Jav

    Jav

    Messages:
    9,765
    Location:
    United States
    This thing is freaking amazing!! I would've never imagined pvc could look so good!!
    Congrats on an original look and an awsome build!!

  21. SlowEddy

    SlowEddy

    Messages:
    20
    so I'm slowly completing drawings while playing GT5 B-spec mode :)

    I added drawings for the Wheel mount in post number #2
    Its pretty generic and and doesn't include any mounting holes for any specific wheel

    - my mount is made from MDF, but any material would work
    - I used 2X 5/16 x 3.5" bolts with lock-nuts drilled through the centers of each PVC T's to connect the wheel mount to the frame

    i was planning to add 2x u-bolts on the left and right T's to further secure the wheel mount to the frame but the 2X 5/16 bolts are strong enough on their own


    the 3M stuff is Self-Adhesive Vinyl - just add heat to it and it gets even more sticky / stretchy / soft really cool stuff (but also pretty expensive)

  22. Anh

    Anh

    Messages:
    3
    What kind of paint did you use to paint with for the "joints"?

  23. lilplayaforlife

    lilplayaforlife

    Messages:
    21
    Hey Eddy awesome build man! I downloaded the blueprints and recently got started on your build. I'm so excited and cant wait for it to be finished, but i have a few questions first.
    1. What angle are the Pvc 2" Tee's for the steering wheel mounted to.
    2. What is the length of the piece that holds the shifter (center console)
    3. Any suggestions on gluing the darn thing together? I've already assembled it a few times but I'm scared to start gluing lol because i dont want to mess up.

    Thats it for now, if i have any more bumps along this road ill be sure to post on this wonderful thread you have going here.

    Thanks in advance!

  24. rise888

    rise888

    Messages:
    35
    Awesome build Eddy!

    How did you mount the wooden seat base to the PVC?

  25. SlowEddy

    SlowEddy

    Messages:
    20
    1. I'm not 100% sure which part you are talking about, but the steering mount is made up of T's and 90 degree elbows
    2. Its about 39.5"
    3. dry fit everything first to see how the fitment is. take your time don't rush. i hate gluing too. i ended up bolting a lot of stuff together


    i used 4 x 5/16x3.5 bolts which were drilled straight through the wood seat mount and PVC frame

  26. simul8r

    simul8r

    Messages:
    23
    Greetings fellow builders!! Wow, I'm really impressed with the amount of work that's progressing here. Good work Eddy, keep it up!!:tup:

    Just to help some of those questions regarding the PVC pipes. I used the thick kind at almost 5mm wall thickness. It's used for pressurized plumbing able to withstand 280 lbs of pressure at 73 degrees F; schedule #40 (if I remembered). They are not of the cheap thin kinds so stay away from those. ABS can be used but is much more brittle than PVC and cracks easier. In comparison, ABS pipes flex more than PVC as well. Aside from being black in appearance they do have a few more odd joints to choose from but are not as clean looking as the PVC joints. In any case it's obvious that they seem to work but I thought I'd just throw this out there for those who have been inquiring.

    Last edited: Dec 14, 2010
  27. lilplayaforlife

    lilplayaforlife

    Messages:
    21
    Eddy I was talking about the steering wheel mount, what angle is it at? Because if it were straight then the g27 would be like facing up not straight. I don't have the wheel yet so I'm just wondering.
    I see your wooden steering wheel mount is at an angle, so that's what I'm talking about.

  28. Tweepent

    Tweepent

    Messages:
    133
  29. SlowEddy

    SlowEddy

    Messages:
    20
    ohh I do not have the exact angle for that - i did a dry fit with the PVC Ts that hold the wheel mount. set the angle that suited me and then drilled / bolted the T's to the PVC parts - one of those set it and forget it type deals.


    ohh nice find!
    I bought a 60"X 48" sheet and hand plenty leftover - i didn't cover all of the PVC parts ( i.E the 3" PVC parts i just painted black)

    I think a 60" x 36" sheet would be enough to cover what i covered

  30. Tweepent

    Tweepent

    Messages:
    133
    Awesome, thanks SlowEddy
